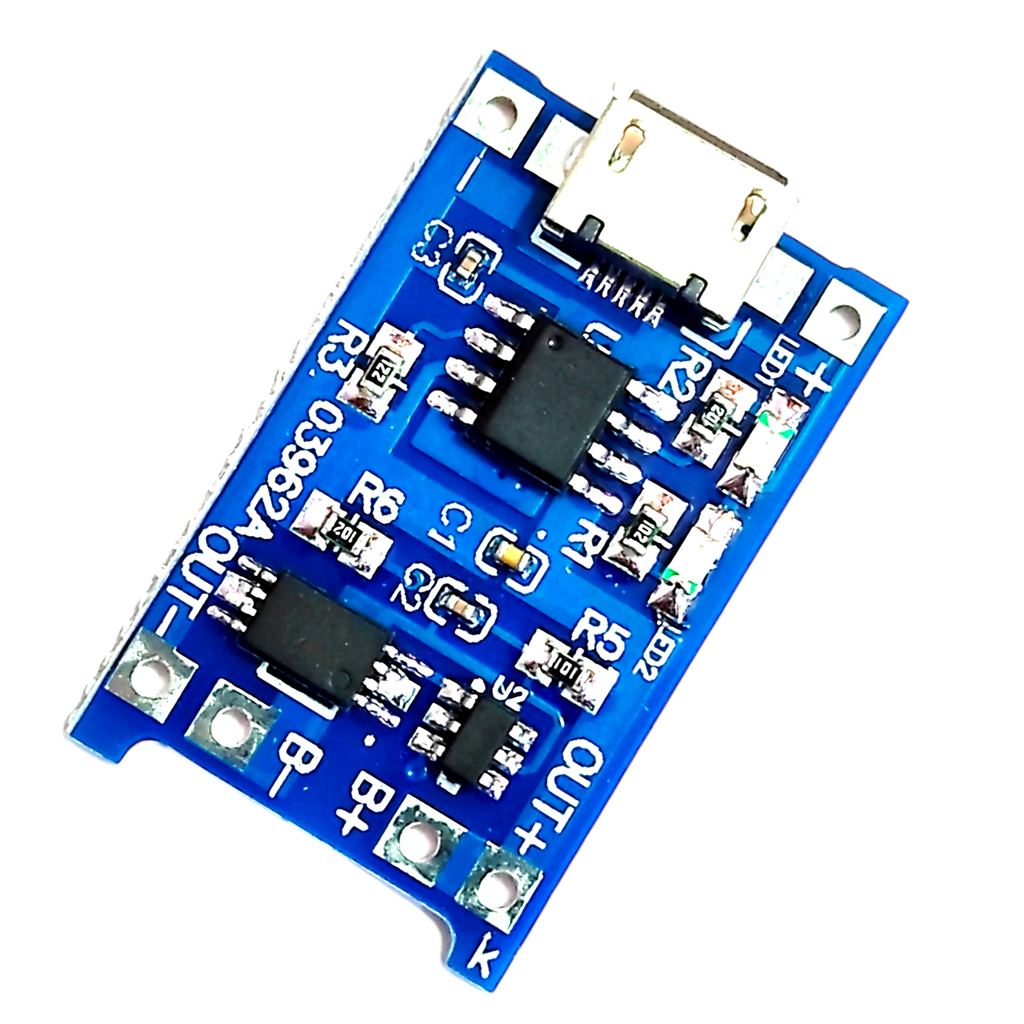

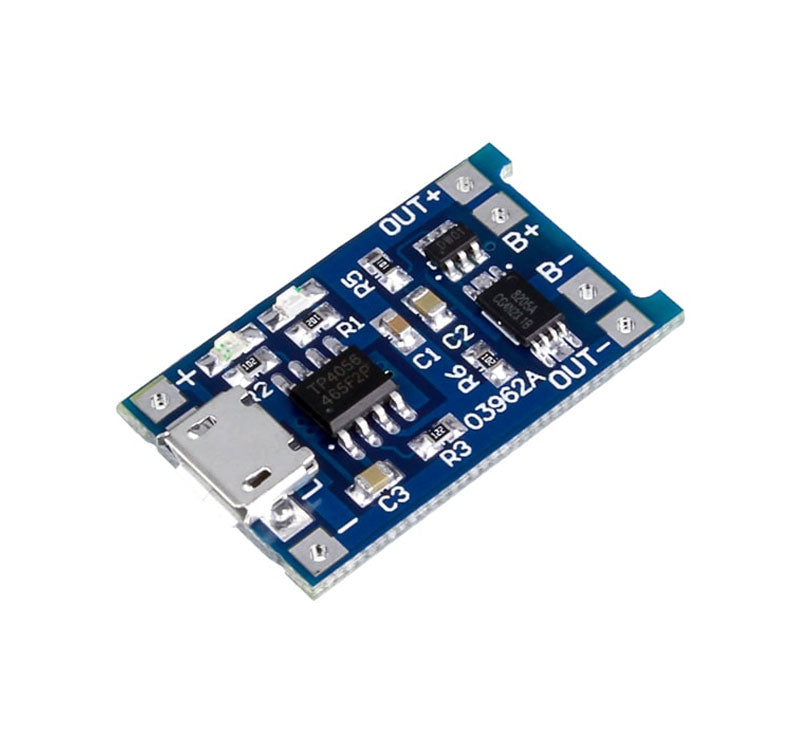

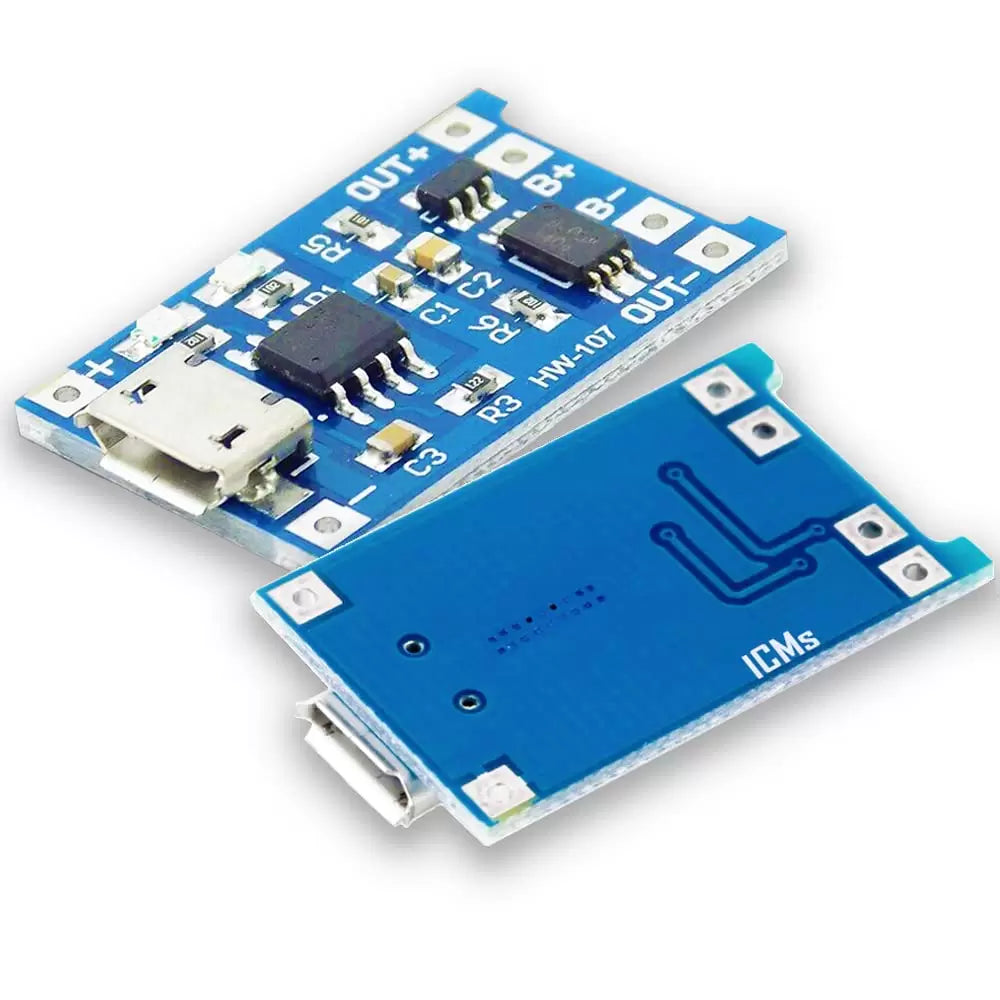

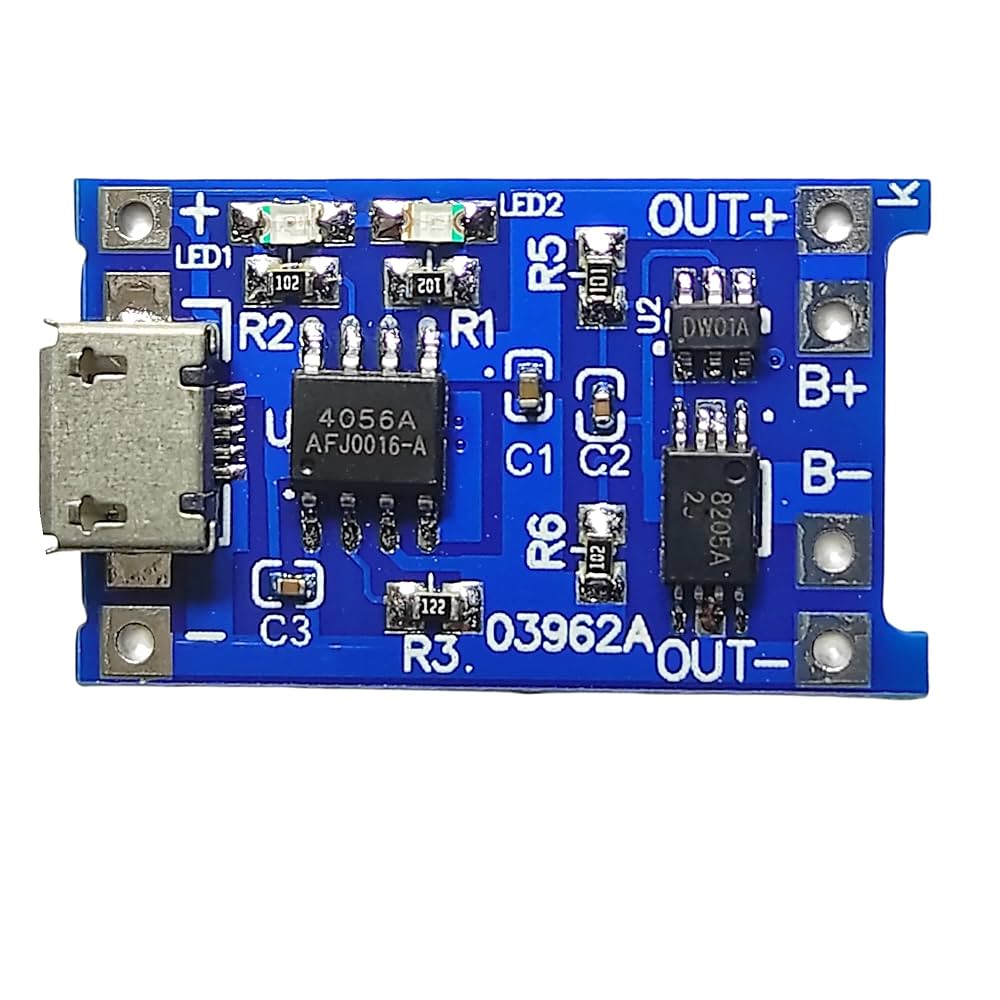

TP4056 1A Li-ion Lithium Battery Charging Module – Micro USB Type | Pack of 5

Power your projects with the TP4056 1A Lithium Battery Charging Module, designed for safe and efficient charging of single-cell Li-ion and Li-Polymer batteries via a Micro USB input. This compact module features built-in overcharge, over-discharge, and short-circuit protection, making it ideal for DIY electronics, portable devices, and battery-powered systems.

The Micro USB interface ensures easy connectivity, while the onboard status LEDs indicate charging progress and completion. Perfect for makers, hobbyists, and professionals needing reliable battery management in compact builds.

Specifications:

• Input Voltage: 4.5V–5.5V (Micro USB)

• Charging Current: 1A (Max)

• Battery Type: Single-cell Li-ion/Li-Polymer (3.7V nominal, 4.2V fully charged)

• Protection: Overcharge, over-discharge, overcurrent

• Status Indicators: Charging (Red LED), Fully Charged (Blue LED)

• Dimensions: Approx. 25mm × 19mm × 10mm

Package Includes:

• 5 × TP4056 1A Li-ion Lithium Battery Charging Module – Micro USB Type
