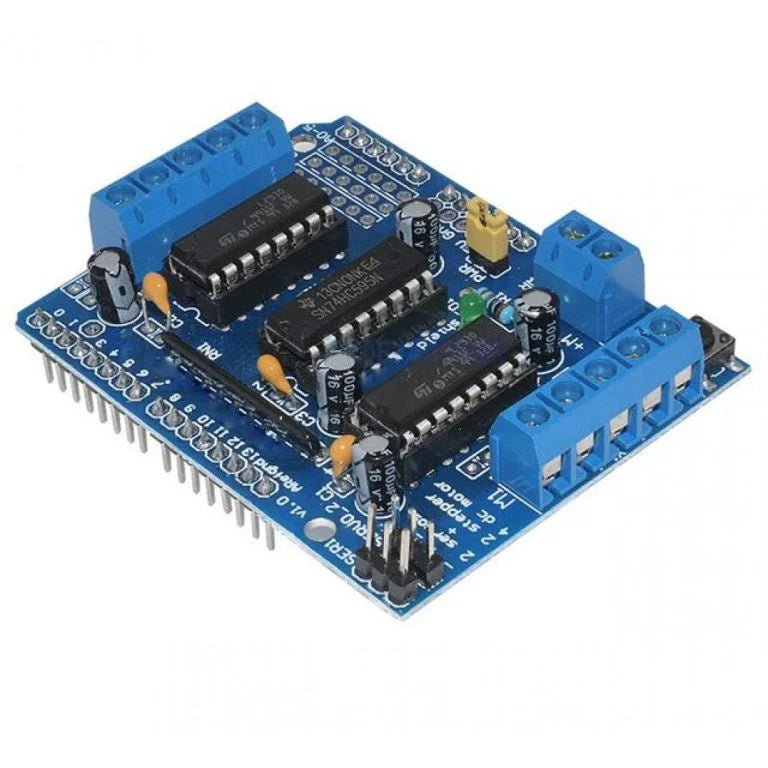

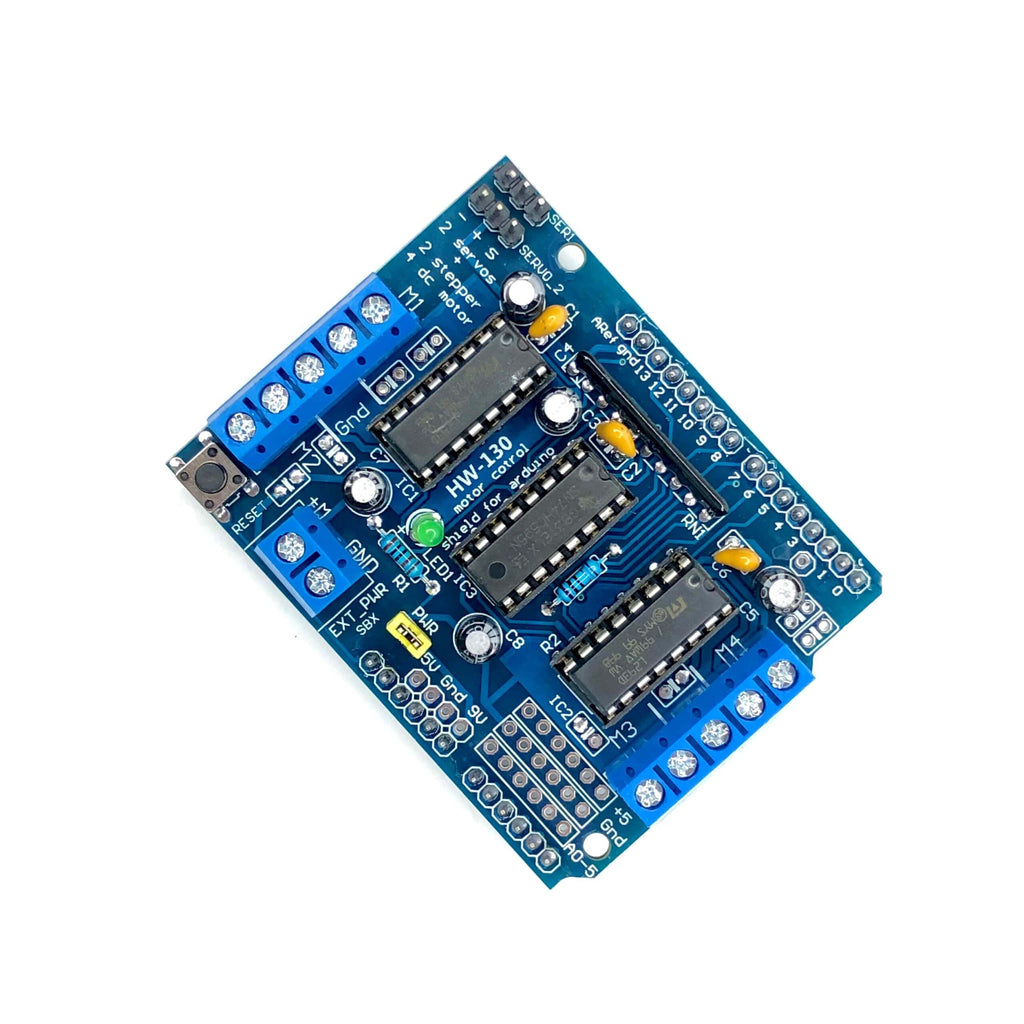

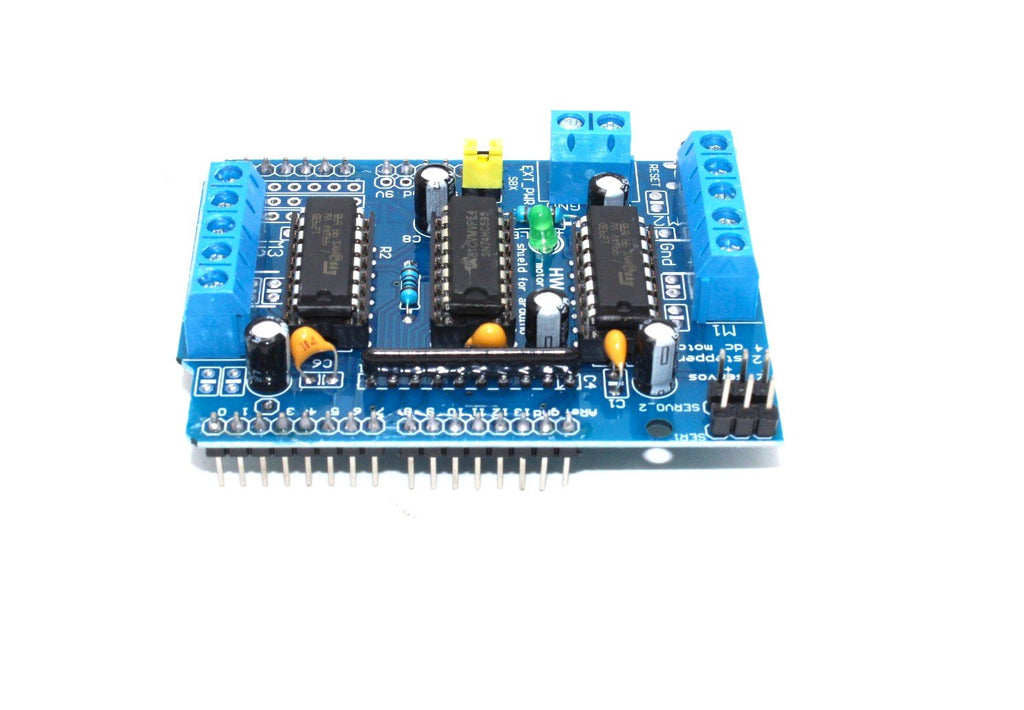

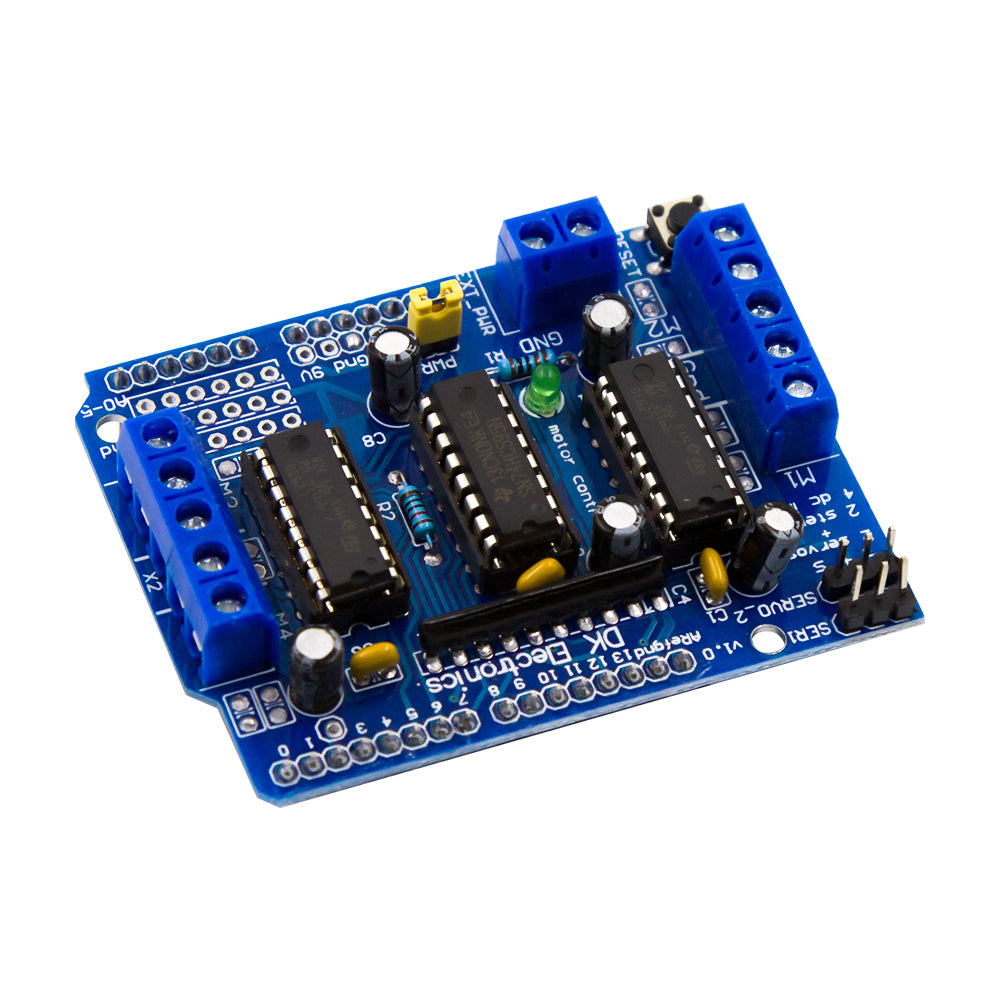

L293D Motor Driver Shield for Arduino – Dual H-Bridge DC & Stepper Motor Control

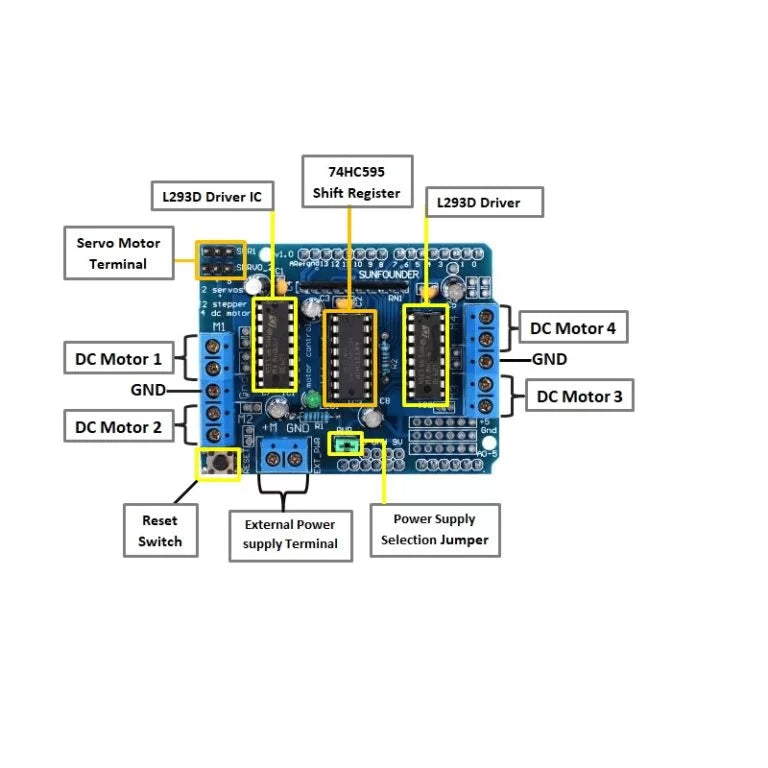

The L293D Motor Driver Shield for Arduino is a versatile expansion board that enables your Arduino to control DC motors, stepper motors, and servos with ease. Powered by the L293D dual H-bridge driver IC, this shield supports up to 4 DC motors or 2 stepper motors, with independent speed and direction control via PWM. It’s an excellent choice for robotics, automation, and motion-based DIY projects.

Features:

• Driver IC: L293D Dual H-Bridge

• Controls: Up to 4 DC motors or 2 stepper motors + 2 servo motors

• Motor Supply Voltage: 4.5–25V

• Peak Motor Current: 600 mA per channel

• Speed and direction control via PWM

• Stackable shield design – works directly with Arduino boards

• Compatible with Arduino libraries for easy coding

Package Includes:

• 1 × L293D Motor Driver Shield for Arduino
