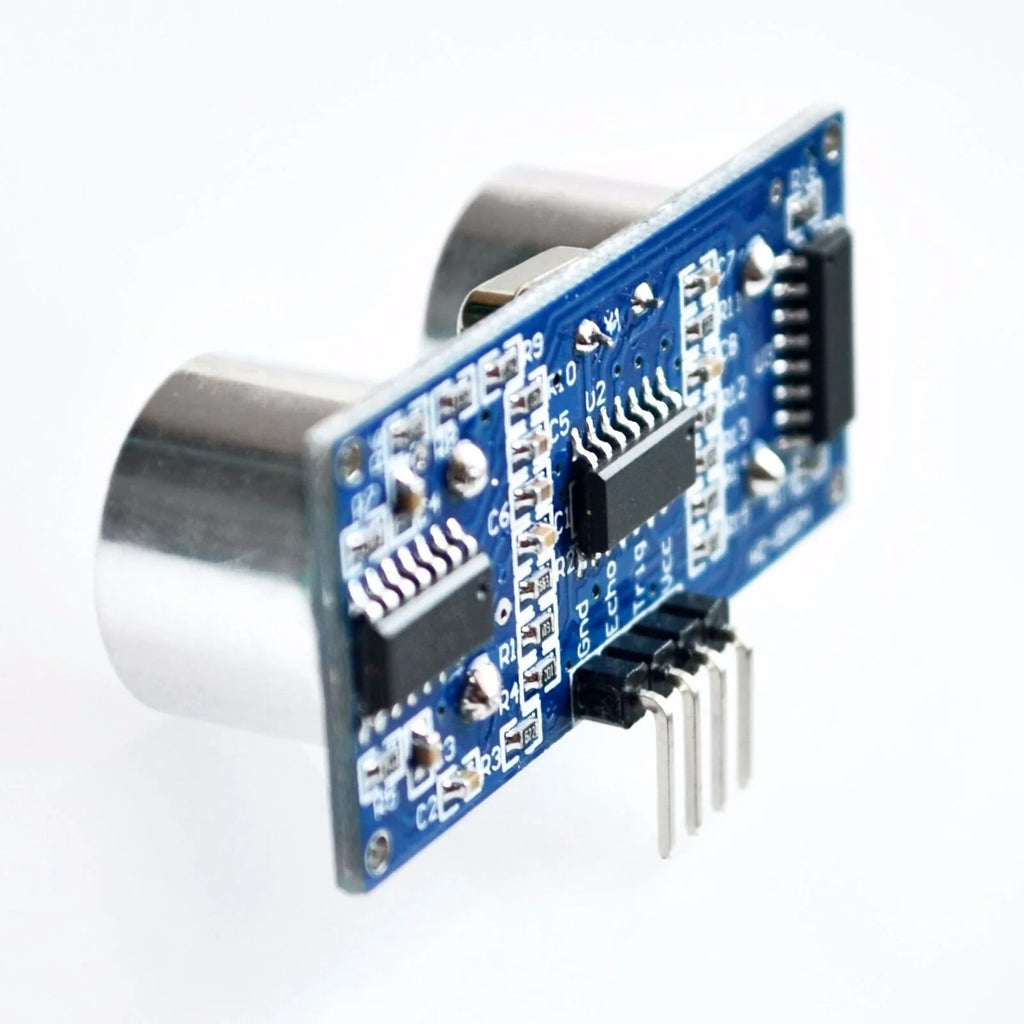

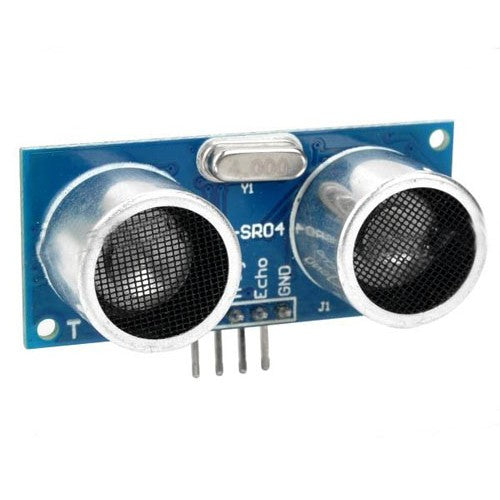

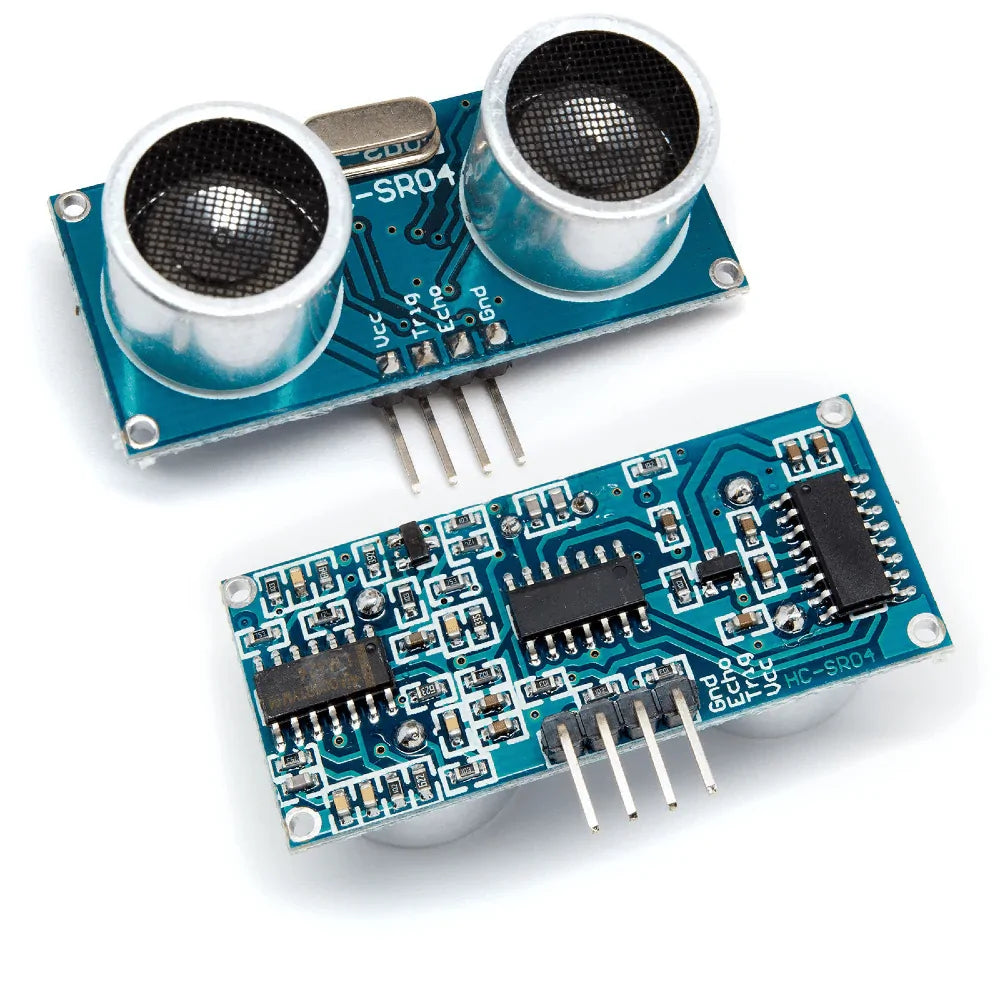

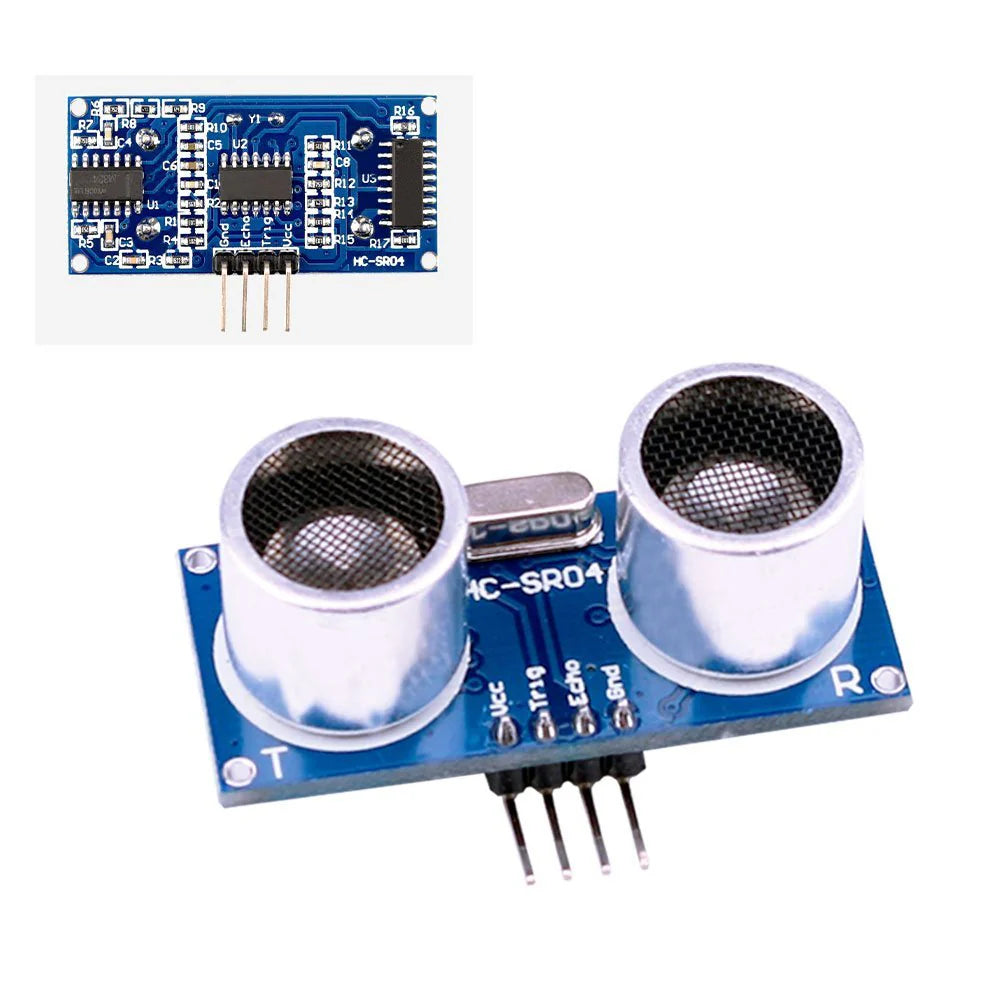

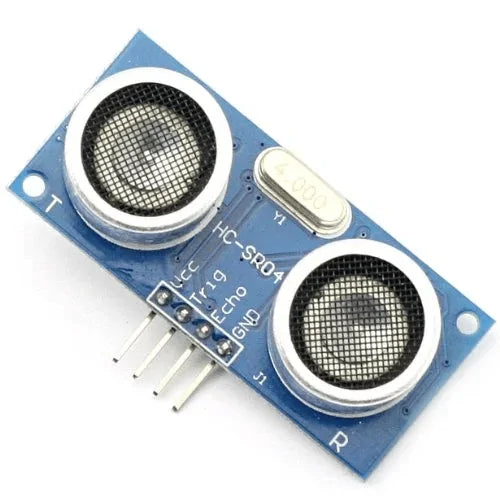

HC-SR04 Ultrasonic Distance Measurement Transducer Module Sensor

The HC-SR04 Ultrasonic Distance Sensor Module is a highly accurate and easy-to-use device designed for non-contact distance measurement using ultrasonic waves. It provides precise distance readings by emitting ultrasonic pulses and measuring the time it takes for the echo to return after reflecting off an object. This makes it an essential component for robotics, obstacle avoidance systems, level measurement, and IoT automation projects.

With an effective sensing range of 2 cm to 400 cm and an accuracy of up to 3 mm, the HC-SR04 is widely used in DIY projects, industrial applications, and educational setups. Fully compatible with Arduino, ESP32, Raspberry Pi, and other microcontrollers, it offers a simple 4-pin interface for quick and reliable integration.

Key Features:

• Operating Voltage: 5V DC

• Measuring Range: 2 cm to 400 cm (4 meters)

• Accuracy: ±3 mm

• Operating Frequency: 40 kHz

• Interface: 4 Pins (VCC, Trig, Echo, GND)

• Detection Angle: 15° cone

• Compact Module Size: Easy to mount on robotic platforms and enclosures

• Low Power Consumption: Suitable for battery-operated projects

• Compatible With: Arduino, ESP32, Raspberry Pi, and other development boards

Applications:

• Obstacle Avoidance Robots

• Autonomous Navigation Systems

• Distance Measurement and Object Detection

• Smart Parking Systems

• Water Level Detection and Liquid Measurement

• IoT-Based Smart Automation Projects

• DIY Robotics and Embedded Systems Learning Kits

Package Includes:

• 1 x HC-SR04 Ultrasonic Distance Measurement Sensor Module

Why Choose the HC-SR04 Ultrasonic Sensor?

• Provides highly accurate non-contact distance measurements.

• Simple 4-pin interface for quick integration with microcontrollers.

• Ideal for robotics, automation, and IoT applications.

• Cost-effective solution for both hobby and professional projects.

• Supported by a vast range of Arduino libraries and online resources.
