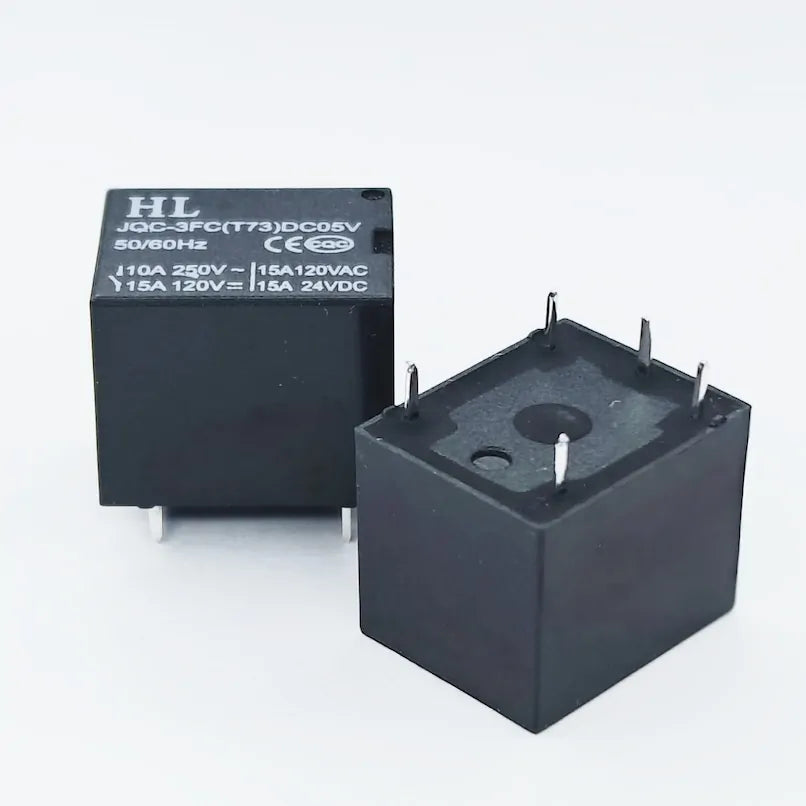

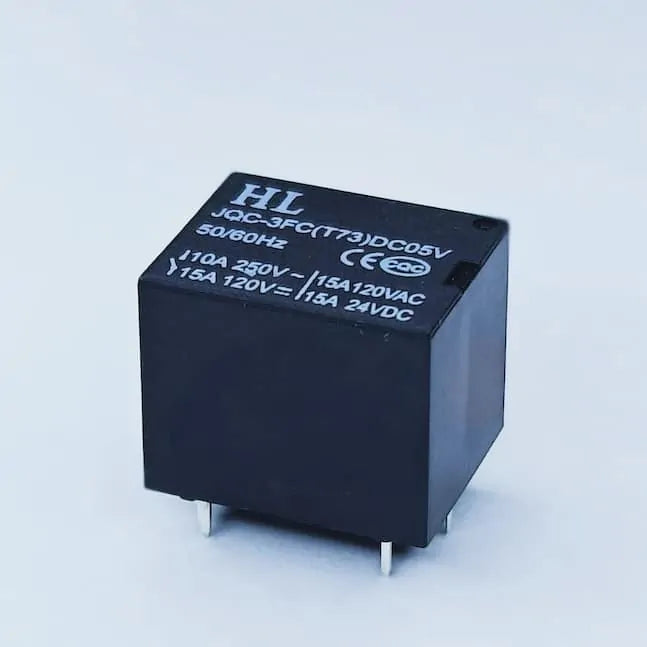

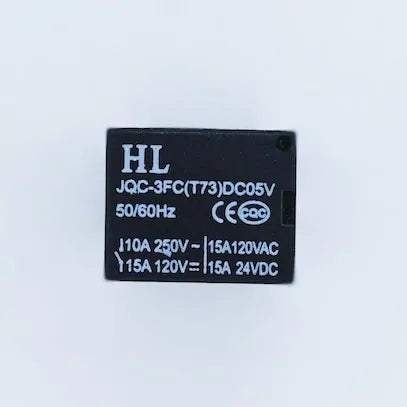

5V 10A SPDT PCB Mount Relay – SPDT High Power Electromagnetic Relay for AC/DC Load Switching

The 5V 10A SPDT PCB Mount Relay is a high-power electromagnetic relay designed for switching heavy AC and DC loads with precision and reliability. Featuring a Single Pole Double Throw (SPDT) contact configuration and a standard 5-pin layout, this relay offers versatile switching capabilities between two circuits, making it ideal for automation systems, industrial control, IoT-based smart switching, and embedded power control projects.

Capable of handling up to 10A at 250V AC / 10A at 30V DC, this relay provides robust performance in a compact PCB-mountable package, ensuring efficient and safe load switching in home automation devices, industrial panels, automotive applications, and microcontroller-based projects.

Key Features:

• Coil Voltage: 5V DC

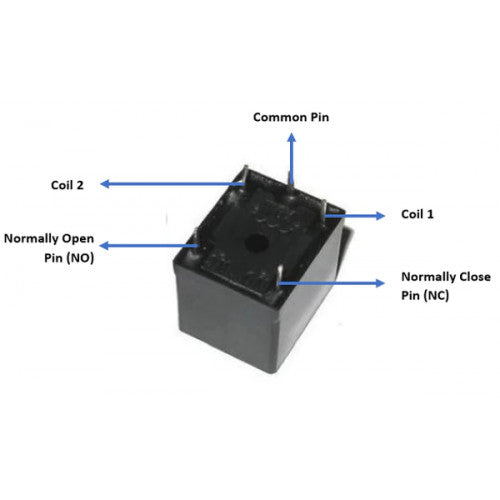

• Contact Configuration: Single Pole Double Throw (SPDT) – 5-Pin

• Switching Current Capacity: 10A @ 250V AC / 10A @ 30V DC

• Contact Material: High-quality Silver Alloy Contacts for long life and reliable switching

• Compact PCB Mount Design: Space-efficient for embedded circuits and control boards

• Dielectric Strength: Coil to Contact isolation voltage ≥500V AC

• Low Coil Power Consumption: Suitable for microcontroller interfacing (Arduino, ESP32, etc.)

• Fast Switching Response: Electromagnetic actuation mechanism

• Durable Construction: Designed for industrial-grade applications

Applications:

• AC/DC Load Switching in Automation Projects

• Smart Home Appliance Control

• IoT-Based Relay Switching Modules

• Industrial Control Panels & Machinery Interface

• Automotive Electronics & Control Systems

• Solenoid, Motor & High-Current Load Control

• DIY Embedded Systems & Prototyping Projects

Package Includes:

• 5 x 5V 10A SPDT PCB Mount Relay (5-Pin)

Why Choose This High Power SPDT Relay?

• High current handling up to 10A for demanding applications.

• SPDT configuration enables versatile circuit switching between NO (Normally Open) and NC (Normally Closed) contacts.

• Compact PCB-mountable design for space-saving embedded applications.

• Compatible with Arduino, ESP32, Raspberry Pi, and relay driver circuits.

• Reliable and durable for both hobbyist and industrial-grade applications.
