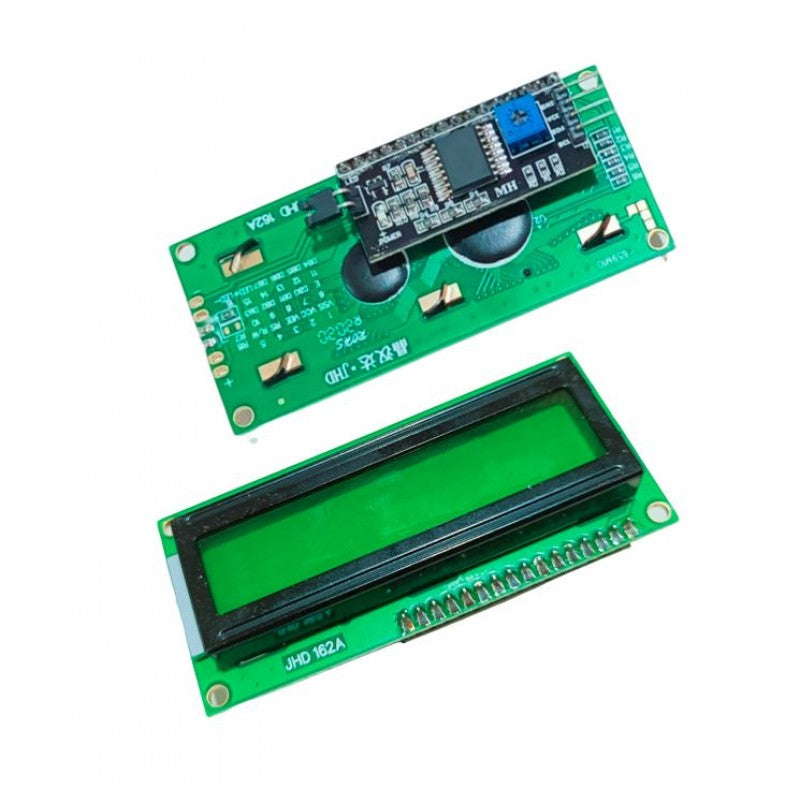

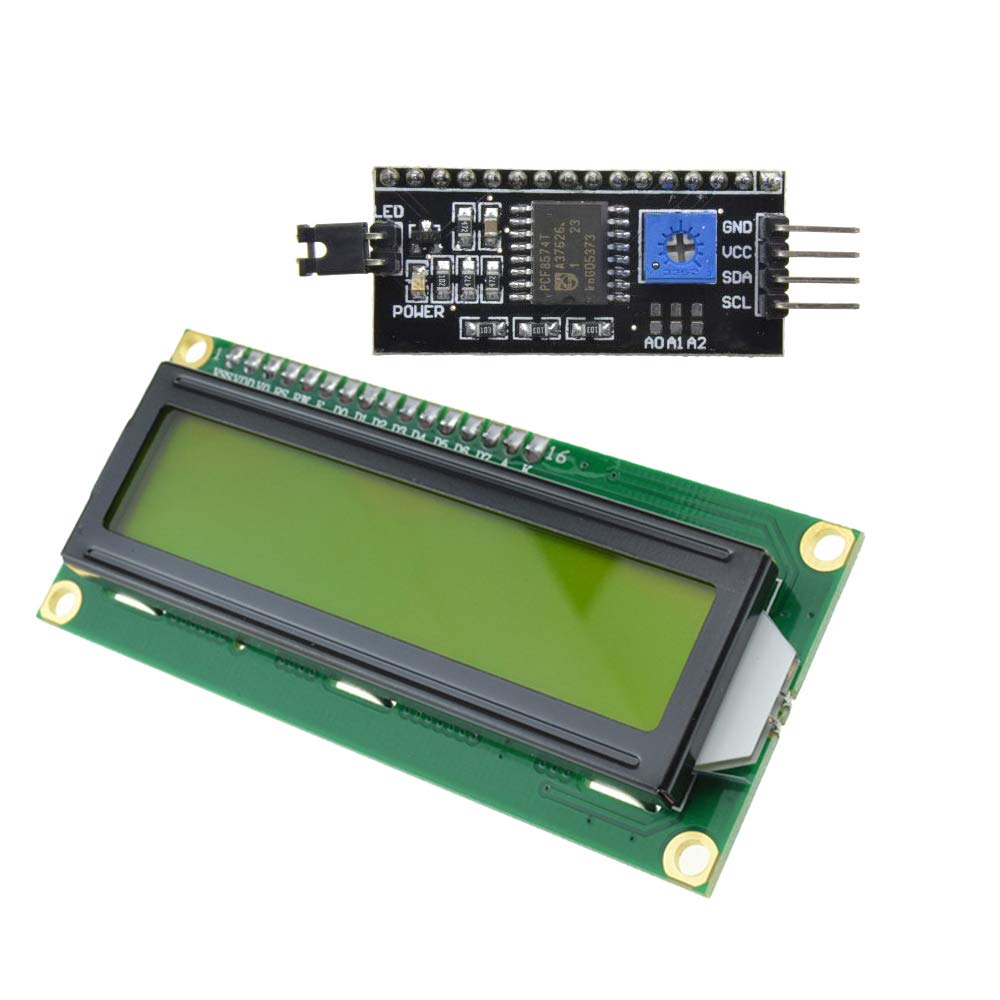

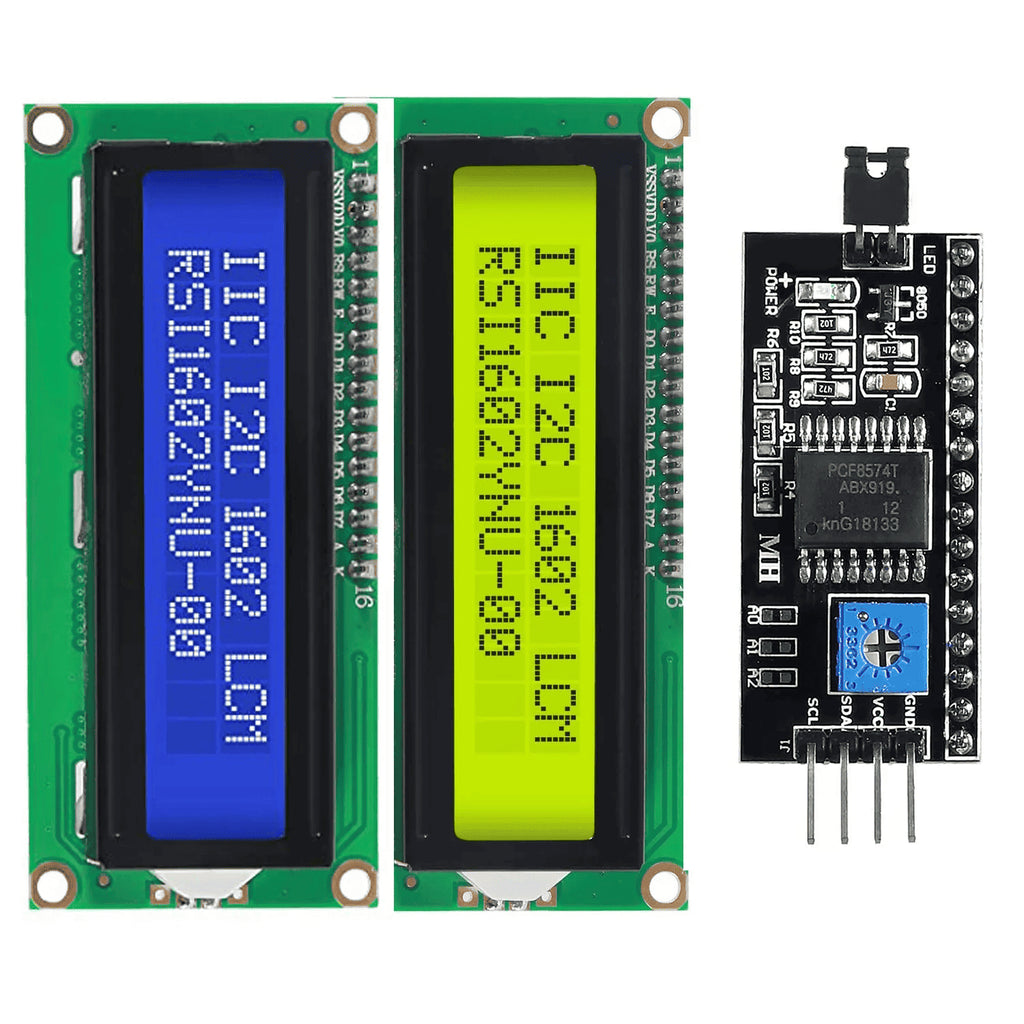

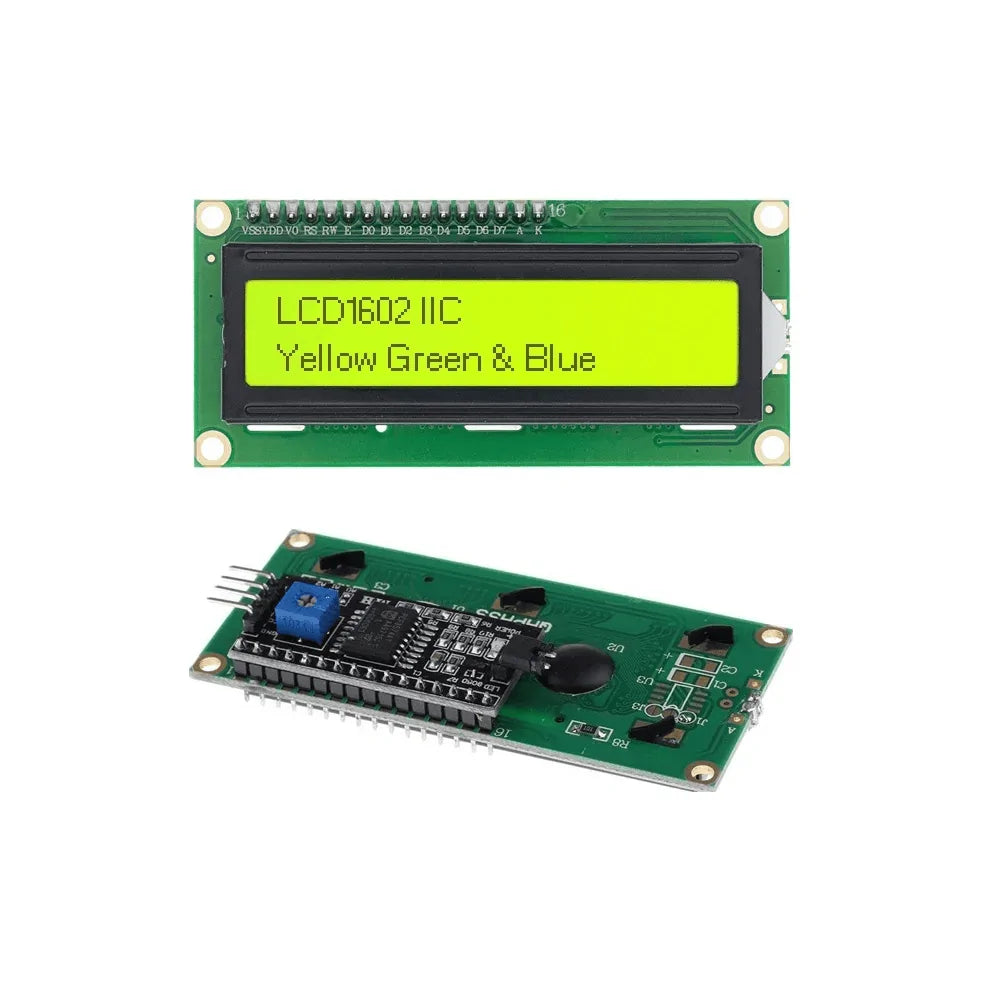

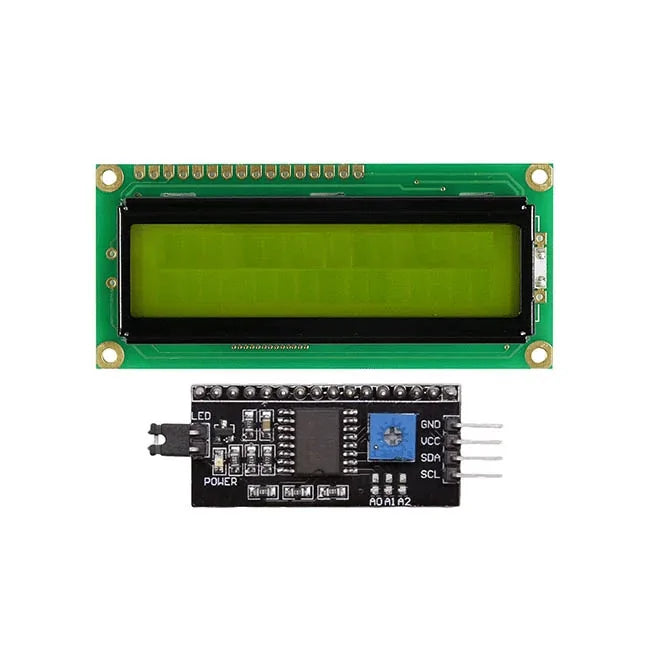

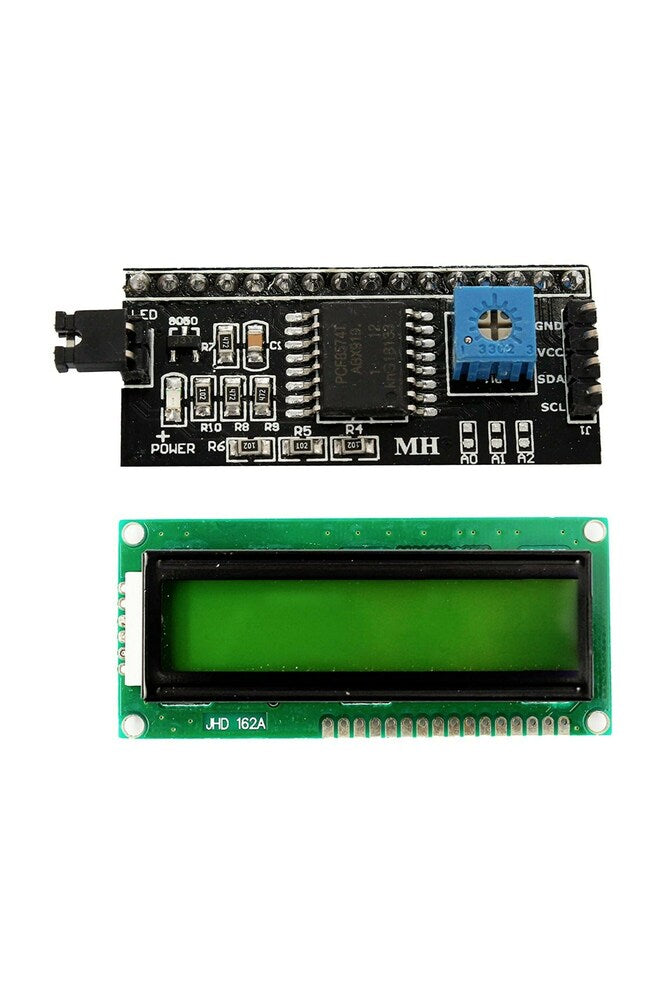

16x2 LCD Module Shield with I2C Interface – Yellow-Green Backlight Alphanumeric Display

The 16x2 LCD Module Shield with I2C Interface is a compact and efficient alphanumeric display designed to simplify LCD interfacing in Arduino, ESP32, Raspberry Pi, and microcontroller-based projects. Featuring 2 rows of 16 characters each and a bright yellow-green LED backlight, this module ensures crisp visibility even in low-light conditions.

Equipped with a pre-soldered I2C (IIC) adapter board, this shield significantly reduces the number of microcontroller pins required for connection—down from 16 to just 2 data lines (SDA & SCL), making it ideal for projects where GPIO pins are limited. The module is based on the popular HD44780 LCD controller and can be easily programmed using widely available libraries like LiquidCrystal_I2C.

With its onboard contrast adjustment potentiometer, soldered header pins, and status power LED, this LCD module is a perfect fit for sensor data display, DIY projects, automation interfaces, and educational electronics kits.

Key Features:

• Display Type: 16x2 Alphanumeric LCD (Yellow-Green Backlight)

• Interface: I2C (IIC) Communication Protocol (Address Configurable via Jumpers)

• Controller IC: HD44780 Compatible

• Operating Voltage: 5V DC

• Power LED Indicator: Onboard Status Light

• Contrast Adjustment: Onboard Potentiometer for Easy Brightness Control

• Pins Required: Only 2 (SDA & SCL) for Data Transmission

• Compact PCB Design: Saves GPIO Pins for Multi-Function Projects

• Compatible With: Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PIC, AVR, 8051

Applications:

• Sensor Data Display Panels

• Home Automation Interfaces

• Robotics Control Panels

• IoT Device Status Indicators

• DIY Digital Clocks and Meters

• Educational STEM Learning Kits

• Embedded Systems Visual Outputs

Package Includes:

• 1 x 16x2 LCD Module Shield (Yellow-Green Backlight) with I2C Adapter

Why Choose the I2C 16x2 LCD Shield?

• Saves up to 12 GPIO pins using efficient I2C communication.

• Clear, bright yellow-green backlight for excellent readability.

• Plug-and-play compatibility with Arduino IDE and LiquidCrystal_I2C libraries.

• Perfect for compact embedded designs and space-constrained projects.

• Easy contrast adjustment for optimal display brightness control.
