STM32F103C8T6 ARM Cortex-M3 Development Board – Blue Pill

STM32F103C8T6 ARM Cortex-M3 Development Board – Blue Pill

Rs. 181.00 Rs. 899.00

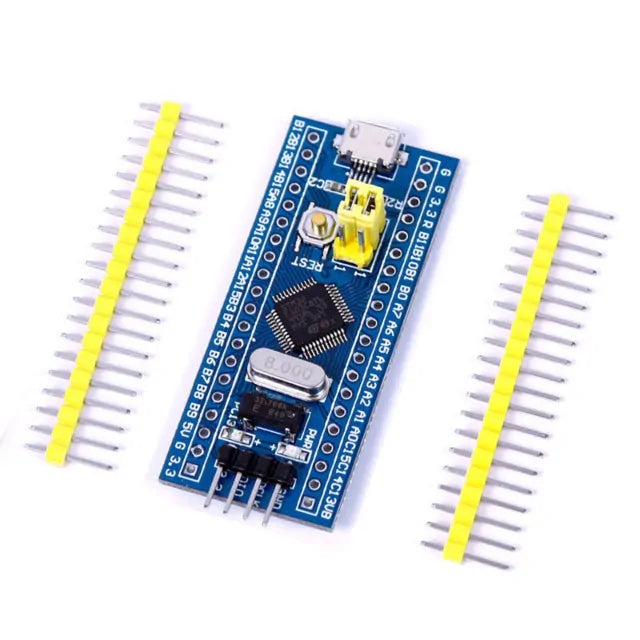

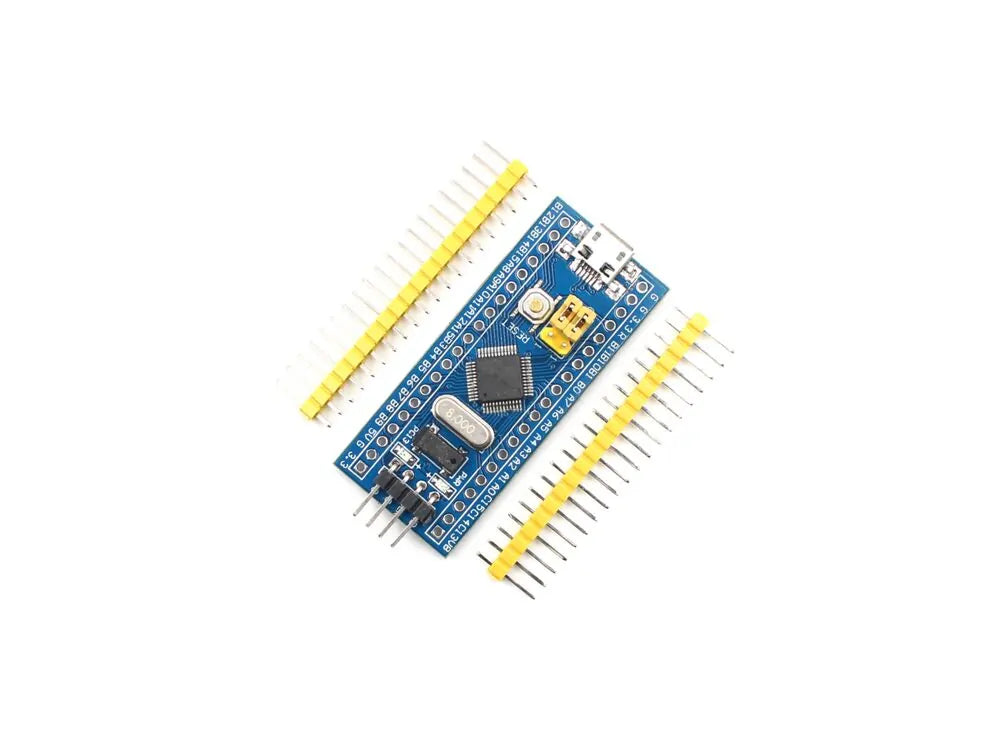

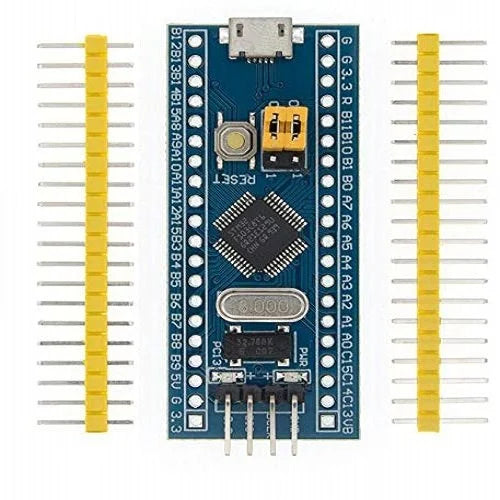

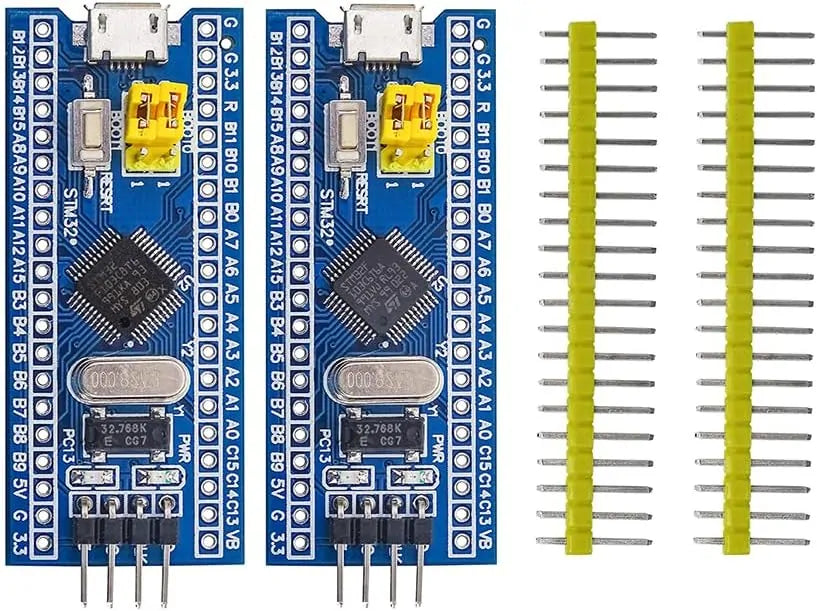

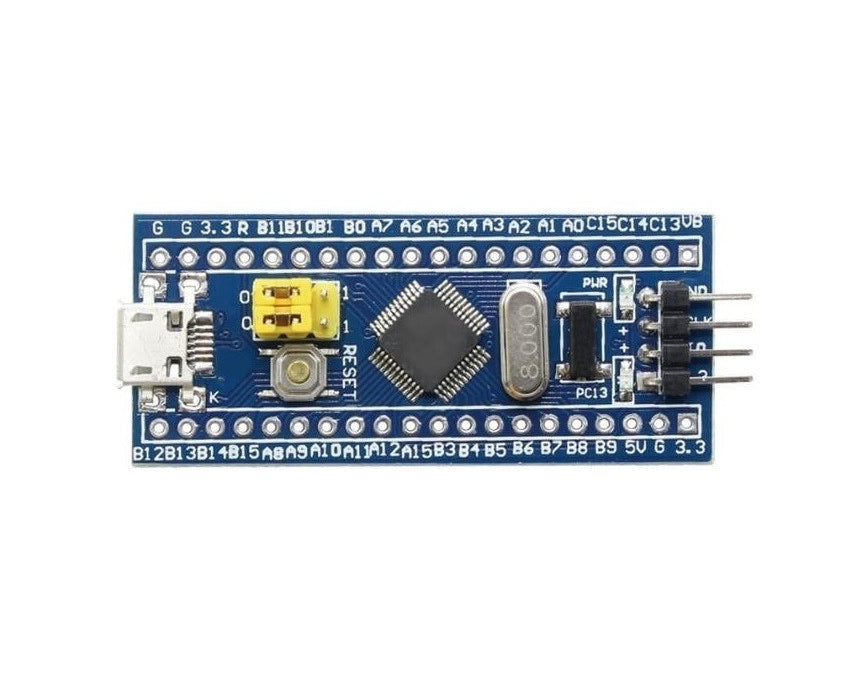

The STM32F103C8T6 Development Board, popularly known as the Blue Pill, is a compact and powerful microcontroller board based on the ARM Cortex-M3 32-bit RISC core running at 72 MHz. Designed for embedded systems enthusiasts, hobbyists, and professional developers, this board offers a cost-effective platform for high-performance applications requiring advanced peripherals and real-time processing.

With 64KB Flash, 20KB SRAM, and a rich set of I/O ports including SPI, I2C, UART, ADC, PWM, and USB connectivity, the STM32 Blue Pill is an excellent alternative to traditional Arduino boards, delivering superior processing power and flexibility. It is compatible with development environments such as STM32CubeIDE, Keil uVision, PlatformIO, and can also be programmed using the Arduino IDE (via STM32duino core).

Key Features:

  • Microcontroller: STM32F103C8T6 (ARM Cortex-M3 @ 72MHz)

  • Flash Memory: 64KB (some variants with 128KB)

  • SRAM: 20KB

  • Operating Voltage: 3.3V (5V tolerant I/O pins)

  • I/O Pins: 37 GPIOs including:

    • 10 ADC channels (12-bit)

    • 3 UARTs, 2 SPIs, 2 I2Cs, PWM outputs

  • Onboard USB Micro Port: For programming and power

  • Reset and Boot Mode Switches: For manual firmware upload

  • Crystal Oscillators: 8MHz (system) and 32.768kHz (RTC)

  • Dimensions: Compact and breadboard-friendly form factor

  • Programming Support: STM32CubeIDE, Keil, Arduino IDE (STM32duino), PlatformIO

Applications:

  • Embedded Systems Development

  • Robotics and Motion Control

  • Industrial Automation Controllers

  • IoT Devices and Wireless Gateways

  • Data Acquisition Systems

  • Educational and Research Prototyping

Package Includes:

  • 1 x STM32F103C8T6 Blue Pill Development Board (Unsoldered Headers Included)

Why Choose the STM32F103C8T6 Blue Pill?

  • High-performance ARM Cortex-M3 core at a budget-friendly price.

  • Rich peripheral set for real-time embedded applications.

  • Compatible with multiple development environments.

  • Perfect upgrade for developers transitioning from Arduino to STM32 platforms.

  • Widely supported by a strong developer community and open-source resources.
