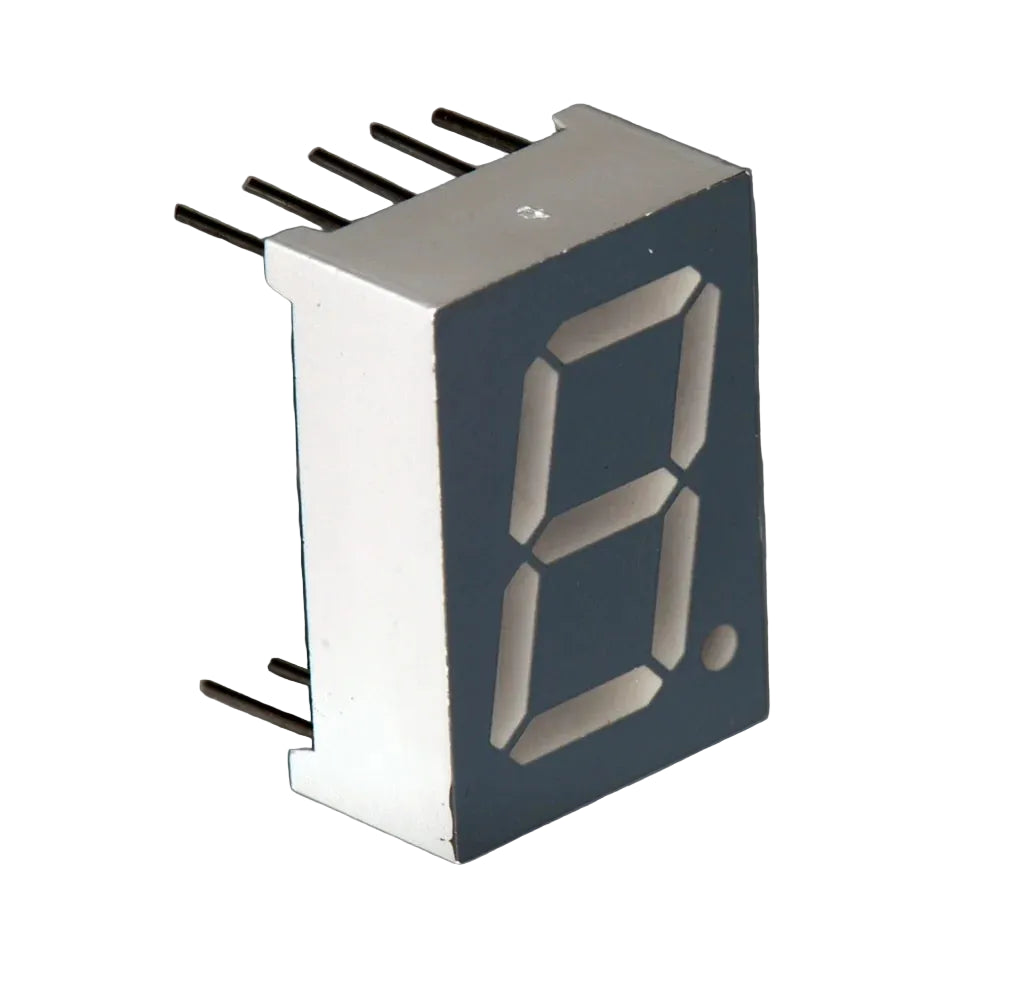

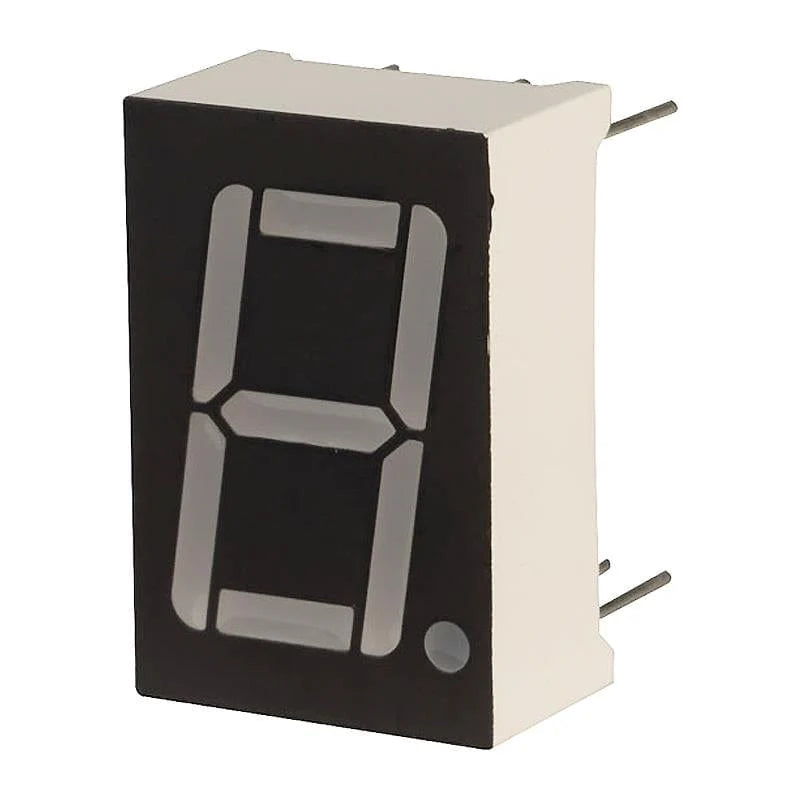

Single Digit 7 Segment Display Common Cathode (CC) – LED Numeric Display for Arduino & Digital Electronics
Rs. 11.00
Taxes included.
Shipping calculated at checkout.
The Single Digit 7 Segment Common Cathode (CC) Display is a compact and easy-to-use LED numeric display module designed for displaying digits 0 to 9 in electronic circuits. It is widely used in Arduino, ESP32, Raspberry Pi, digital counters, clocks, timers, voltmeters, frequency counters, and embedded system projects.
Featuring seven high-brightness LED segments and a decimal point, this display offers excellent visibility and low power consumption. The Common Cathode (CC) configuration allows all LED cathodes to be connected together, making it compatible with a wide range of microcontrollers and digital logic ICs.
Ideal for students, makers, hobbyists, and electronics professionals, this display is perfect for learning digital electronics and building interactive display-based projects.
🚀 Key Features
- Single-digit 7-segment LED display
- Common Cathode (CC) configuration
- Displays numbers 0–9
- Bright and clear LED illumination
- Low power consumption
- Compact, lightweight, and durable
- Easy to interface with Arduino, ESP32, Raspberry Pi, and logic ICs
- Breadboard and PCB friendly
- Long operational life
- Perfect for educational and DIY electronics projects
📦 Package Includes
- 1 × Single Digit 7 Segment Common Cathode (CC) Display
📊 Technical Specifications
| Parameter | Specification |
|---|---|
| Display Type | Single Digit 7 Segment |
| Configuration | Common Cathode (CC) |
| Number of Digits | 1 |
| Number of Segments | 7 + Decimal Point |
| LED Color | Red (or as per selected variant) |
| Mounting Type | Through Hole (DIP) |
| Operating Voltage | Typically 2V–2.2V per LED Segment |
| Viewing Angle | Wide Viewing Angle |
| Package Type | DIP |
💡 Recommended Applications
- Digital counters
- Electronic clocks
- Stopwatch and timer projects
- Scoreboards
- Arduino and ESP32 projects
- Raspberry Pi display projects
- Frequency counters
- Digital voltmeters
- Industrial display systems
- Educational electronics experiments
- DIY embedded system projects
🌟 Why Choose This 7 Segment Display?
- Bright, easy-to-read numeric display
- Simple interfacing with microcontrollers and logic ICs
- Reliable performance with low power consumption
- Ideal for beginners, students, and professionals
- Compatible with a wide range of embedded development platforms
- Excellent choice for digital display and control applications
