Ai-Thinker GP-02 Precision GPS GNSS Module – GP02 Kit for High-Accuracy Positioning, Navigation & IoT Projects
Rs. 499.00
Skip to product information
Ai-Thinker GP-02 Precision GPS GNSS Module – GP02 Kit for High-Accuracy Positioning, Navigation & IoT Projects
Rs. 499.00
Taxes included.
Shipping calculated at checkout.
The Ai-Thinker GP-02 Precision GPS GNSS Module (GP02 Kit) is a compact and versatile GPS/GNSS positioning module designed for accurate location tracking, navigation, timing, and embedded applications. It is an excellent solution for developers working on IoT, robotics, vehicle tracking, drones, navigation systems, and outdoor monitoring projects.
The GP-02 can receive satellite positioning signals and provide location information such as latitude, longitude, altitude, speed, date, and time to a host microcontroller or processor. Its compact form factor makes it easy to integrate into custom electronic products and development projects.
The module can be interfaced with popular development platforms such as Arduino, ESP32, ESP8266, STM32, Raspberry Pi, and other microcontrollers capable of serial communication.
Key Features
- Genuine Ai-Thinker GP-02 / GP02 GNSS module
- GPS/GNSS satellite positioning capability
- Designed for precision positioning applications
- Compact and easy-to-integrate module
- Serial communication interface
- Provides positioning and timing information
- Suitable for outdoor tracking applications
- Compatible with Arduino, ESP32, STM32 and other microcontrollers
- Ideal for IoT and embedded navigation systems
- Suitable for vehicle, robotics and telemetry applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Ai-Thinker |
| Model | GP-02 / GP02 |
| Product Type | GPS / GNSS Module |
| Positioning | Satellite-based GNSS |
| Communication | Serial / UART* |
| Output Data | Position, Time, Speed, Altitude & Navigation Data |
| Antenna | Depends on GP02 Kit configuration |
| Application | Navigation, Tracking & IoT |
| Compatible Platforms | Arduino, ESP32, STM32, Raspberry Pi & Other MCUs |
Interface, supported satellite constellations, positioning accuracy, sensitivity, update rate, antenna configuration and other specifications should be verified against the exact GP-02 hardware revision supplied.
Package Includes
- 1 × Ai-Thinker GP-02 Precision GPS GNSS Module / GP02 Kit
Included antenna, cables or other accessories depend on the specific kit variant.
Recommended Applications
- GPS tracking systems
- Vehicle tracking
- Fleet management prototypes
- IoT location tracking
- Asset tracking
- GPS data loggers
- Robotics
- Drone and UAV projects
- Navigation systems
- Outdoor monitoring
- Geolocation projects
- Time synchronization
- Smart transportation
- Telemetry systems
- Arduino GPS projects
- ESP32 GPS projects
How It Works
The GP-02 receives positioning signals from navigation satellites and calculates the device's geographical position.
A typical embedded GPS project can be configured as:
GNSS Satellites → GP-02 Module → UART → ESP32 / Arduino / STM32 → GPS Application
The host microcontroller can process the received navigation data to determine parameters such as latitude, longitude, altitude, speed, and time.
Why Choose the Ai-Thinker GP-02?
- Compact GNSS solution for embedded products
- Suitable for real-time location applications
- Easy integration with popular microcontrollers
- Useful for both prototyping and product development
- Excellent for IoT and tracking applications
- Suitable for robotics, telemetry and navigation projects
- Provides valuable positioning and timing data for connected devices
Frequently Asked Questions
Q1. Does this GPS GNSS module work with Arduino and ESP32?
Yes. The GP-02 Kit communicates over standard UART using the NMEA protocol, which is universally supported across Arduino, ESP32, STM32, and any platform with a serial port. Use the TinyGPS++ library to parse latitude, longitude, altitude, speed, and time from the NMEA output with minimal code. The default baud rate is 9600 bps for most configurations.
Q2. Do I need an external antenna with this module?

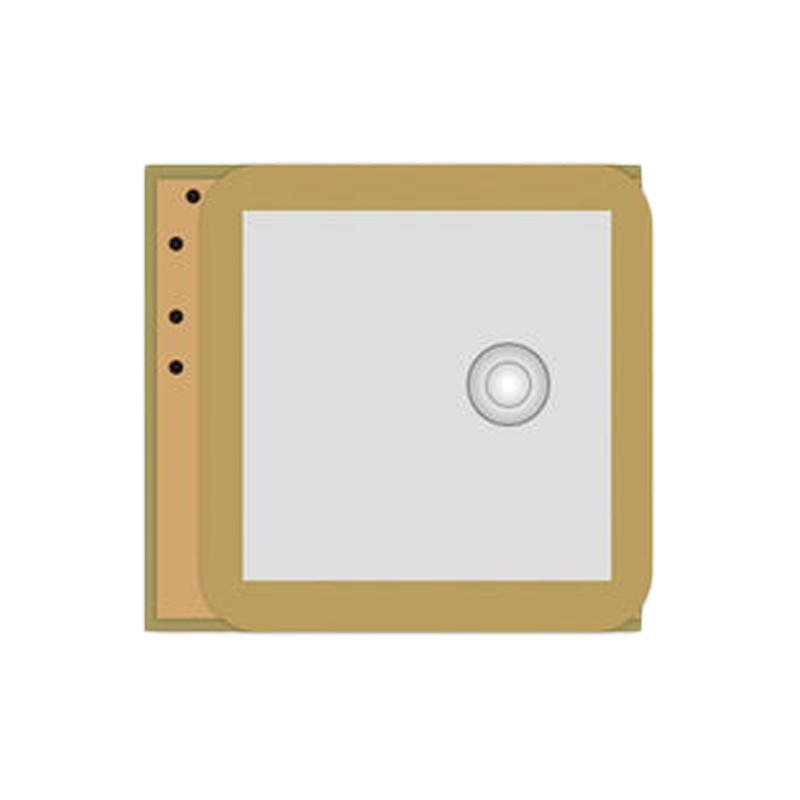

No. The GP-02 Kit includes an integrated ceramic antenna onboard. You do not need to source, connect, or mount any additional antenna. The module also includes active antenna detection and protection, so it monitors antenna integrity automatically. For improved performance in heavily obstructed environments, some users add an optional active external antenna, but it is not required for typical outdoor use.
Q3. What satellite systems does this GPS GNSS module support?
The AT6558R chip supports six systems: BDS (BeiDou / China), GPS (USA), GLONASS (Russia), Galileo (EU), QZSS (Japan), and SBAS augmentation systems (WAAS, EGNOS, GAGAN, MSAS). It can position using any single system independently or in any combination of systems simultaneously for maximum accuracy and availability.
Q4. What baud rate should I use to communicate with the GP-02 Kit?
The default baud rate is 9600 bps, which is standard for NMEA GPS modules. The module supports rates up to 256,000 bps if you need faster data throughput — for example when running at 10Hz update rate with multiple NMEA sentences enabled. Most Arduino and ESP32 projects work perfectly at 9600 bps for 1Hz updates.
Q5. What is the difference between the GP-02 module and the GP-02 Kit?

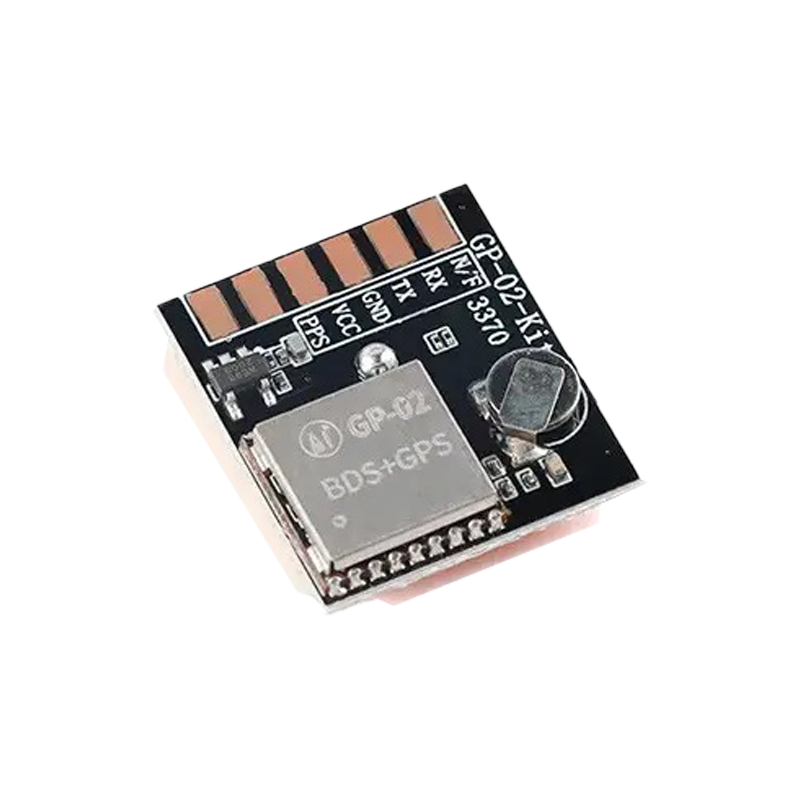

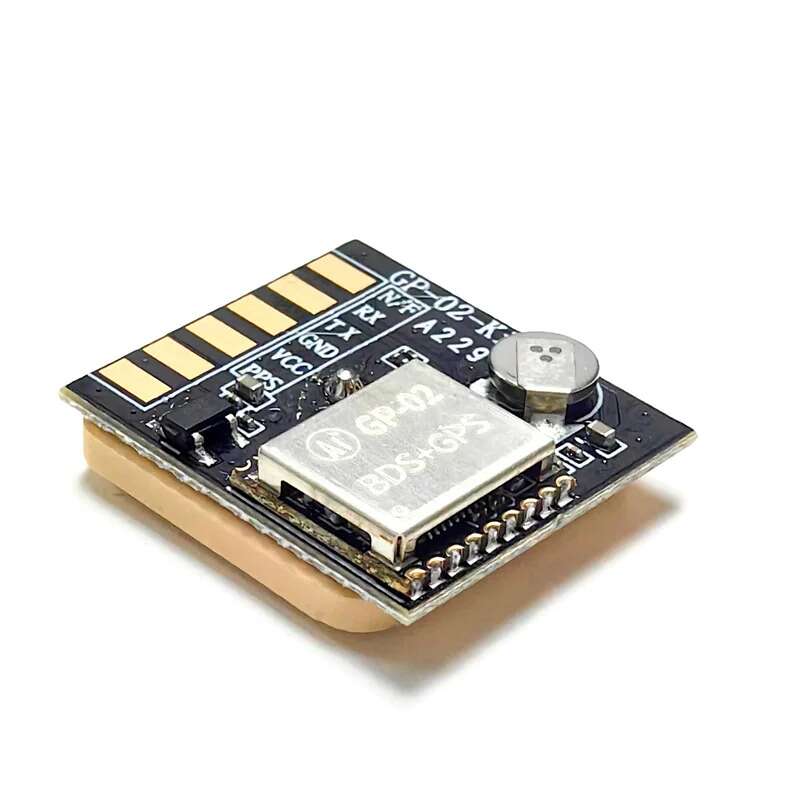

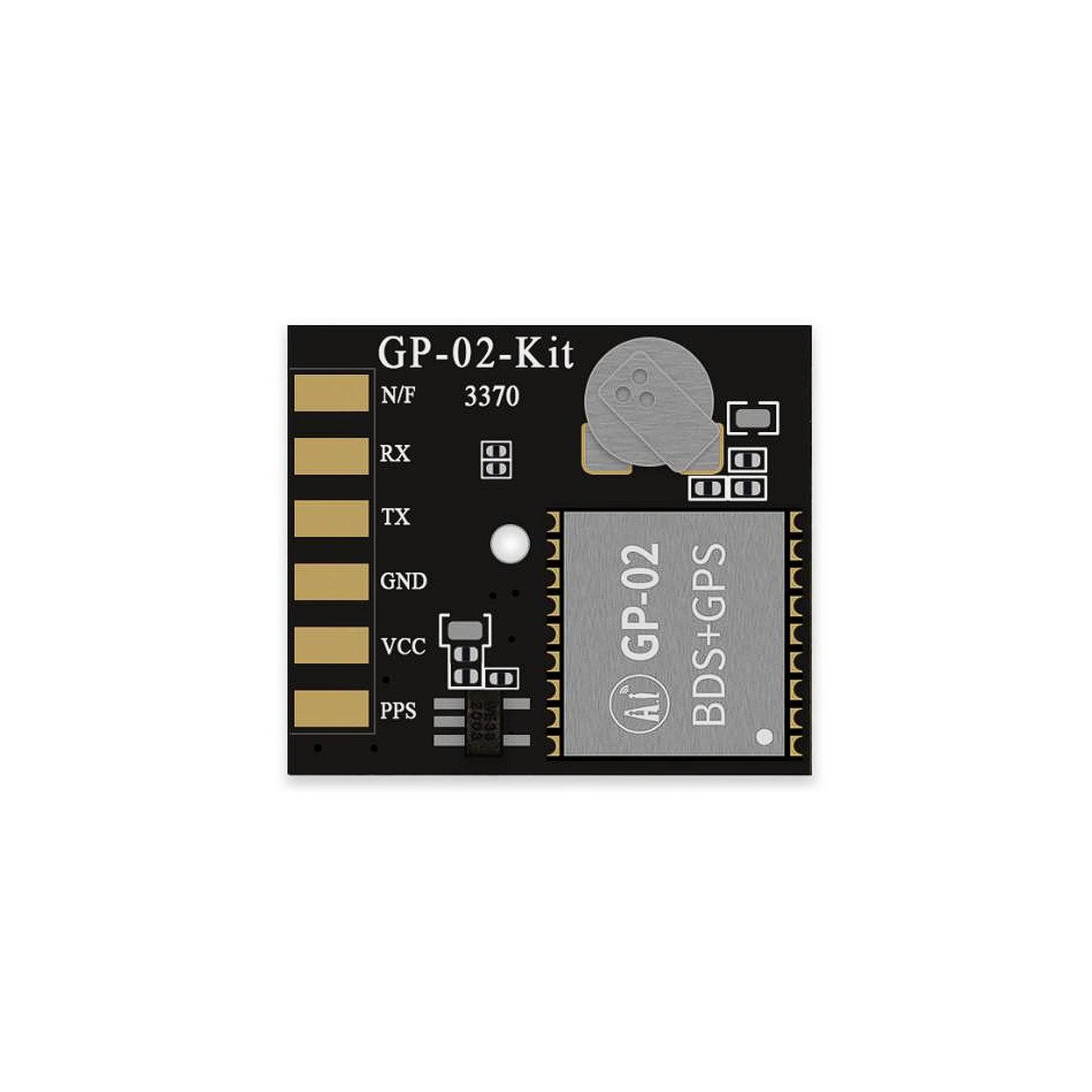

The GP-02 is the bare SMD module (10.3 × 9.9 mm) designed for PCB integration into custom products. The GP-02 Kit is the development board version — it mounts the GP-02 module along with pin headers, a Micro-USB power input, and supporting circuitry, making it ready to use with jumper wires and a breadboard without any soldering. The GP-02 Kit is what you receive with this listing.
