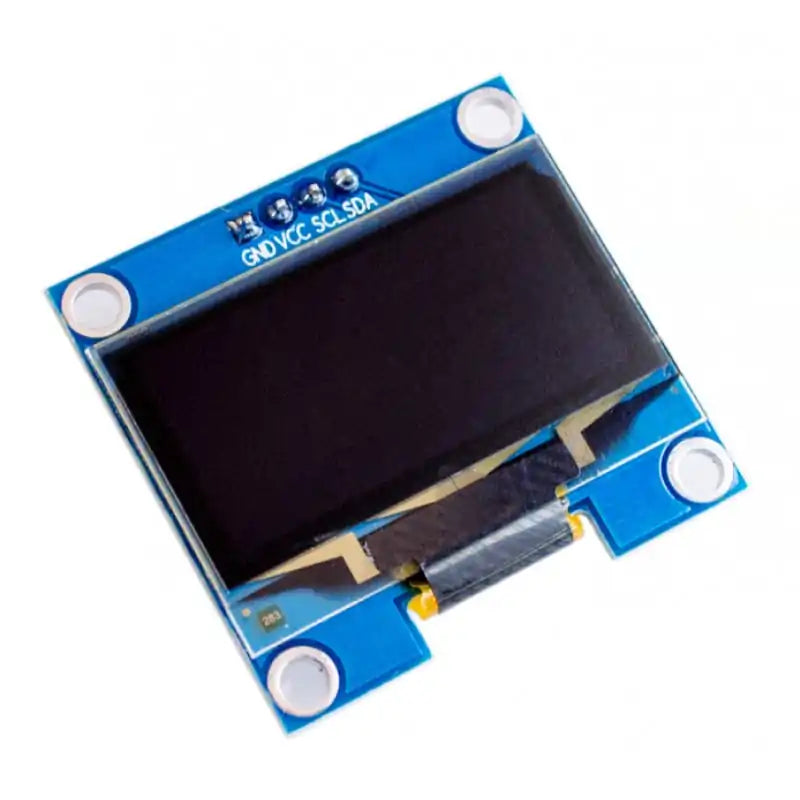

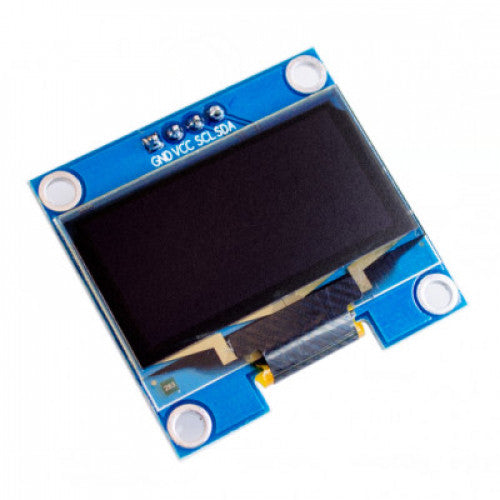

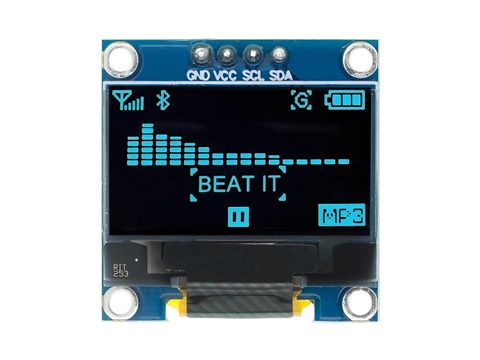

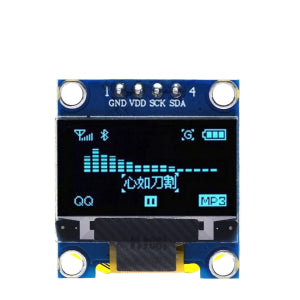

0.96 Inch OLED Display Module – I2C/IIC 128x64 Pixels (4-Pin GVSS) Monochrome Screen for Arduino, ESP32, Raspberry Pi & Embedded Systems

The 0.96 Inch OLED Display Module (128x64 resolution) is a compact, high-contrast graphic display designed for microcontroller and embedded systems. Using OLED (Organic Light Emitting Diode) technology, this module offers sharp visuals with a wide viewing angle, excellent brightness, and ultra-low power consumption compared to traditional LCDs.

Featuring a 4-pin I2C/IIC communication interface (GND, VCC, SCL, SDA), this OLED display requires only two data lines, making it ideal for projects where GPIO pins are limited. The 128x64 pixel resolution allows developers to display text, icons, graphics, and sensor data with exceptional clarity, even on a small screen. It is widely compatible with Arduino, ESP32, Raspberry Pi, STM32, and other microcontroller platforms.

Thanks to its compact size and easy-to-use libraries, this display is perfect for IoT devices, portable gadgets, wearable displays, robotics interfaces, and DIY electronics projects.

Key Features:

• Display Type: 0.96 Inch Monochrome OLED Screen

• Resolution: 128x64 Pixels (White/Blue variants available)

• Interface: I2C/IIC (4-Pin: GND, VCC, SCL, SDA)

• Operating Voltage: 3.3V to 5V DC

• Viewing Angle: Over 160° with high contrast ratio

• No Backlight Required: OLED self-illuminating pixels for clear visuals

• Low Power Consumption: Ideal for battery-operated projects

• Compact Size: Space-saving design for embedded applications

• Controller IC: SSD1306 (Compatible with open-source libraries)

• Fully Compatible With: Arduino IDE, ESP-IDF, Raspberry Pi OS, MicroPython

Applications:

• IoT Device Status Displays

• Sensor Data Visualization Modules

• Smart Wearable Devices

• Robotics Control Panels

• Battery Operated Portable Gadgets

• DIY Clocks, Counters & Interfaces

• Embedded System Debug Displays

• Home Automation Projects

Package Includes:

• 1 x 0.96 Inch 128x64 OLED Display Module (I2C/IIC, 4-Pin)

Why Choose This OLED Display Module?

• Crisp, high-contrast visuals with self-illuminating OLED pixels.

• Requires only 2 data lines (SCL, SDA) for communication via I2C.

• Ultra-low power consumption, making it perfect for portable and IoT projects.

• Supported by Arduino, ESP32, Raspberry Pi with easy-to-use libraries (Adafruit SSD1306, U8g2).

• Compact and durable design for a wide range of embedded applications.
