Introduction to Relay

In the world of electronics and automation, relays play an essential role in controlling high-power circuits with low-power signals. Whether you’re working on a DIY home automation project, an industrial control panel, or a simple Arduino-based setup, relays are everywhere.
In this blog, we’ll dive deep into the WHAT, WHY, and HOW of relays — giving you a complete understanding of this versatile component in a clear and practical way.

🧩 WHAT is a Relay?

A relay is an electromechanical switch used to control one electrical circuit by opening and closing contacts in another circuit.
In simpler terms, a relay allows a low-power circuit (like a microcontroller or sensor) to control a high-power circuit (like a motor, bulb, or AC appliance).

Think of it as a remote-controlled switch — you send a small electrical signal, and the relay either connects or disconnects a larger load circuit.

Basic Definition

A relay consists of:

• An electromagnet (coil),

• A movable armature,

• One or more sets of contacts, and

• A spring mechanism.

When current flows through the coil, it creates a magnetic field that pulls the armature, changing the contact position (ON/OFF).
When the current stops, the magnetic field collapses, and the spring returns the contacts to their original state.

Real-Life Example

Imagine you have a small microcontroller like an Arduino or ESP32. It works at 5V or 3.3V, while your AC bulb requires 230V.
Directly connecting the bulb to your microcontroller would damage it.
That’s where a relay comes in — it acts as a safe bridge between the low-voltage control circuit and the high-voltage load.

⚙️ WHY Do We Use Relays?

Relays are not just simple switches — they’re intelligent intermediaries that allow you to manage power safely and efficiently. Let’s understand why they are so important.

1. Electrical Isolation

One of the most crucial functions of a relay is isolation between the control circuit and the load circuit.
This ensures that high voltages or currents don’t damage sensitive electronic components like sensors, controllers, or processors.

2. Switching High Voltage or Current

Microcontrollers can handle only small currents (typically <20 mA).
But many devices — motors, lamps, solenoids — require much more current.
A relay allows these low-power circuits to switch high-power loads easily.

3. Automation and Remote Control

Relays make automation possible.
You can use them to control appliances remotely using a smartphone, timer, or sensor.
For example:

• Turning ON a water pump when the soil is dry (smart irrigation)

• Switching ON street lights at sunset (light sensor-based control)

• Starting a motor automatically when temperature exceeds a threshold (industrial automation)

4. Safety and Protection

Relays can also provide protection against overload or fault conditions.
For instance, an overload relay disconnects a motor if it draws excessive current, preventing damage.

5. Signal Amplification

A relay can act as a signal amplifier, converting a small input signal into a large output action — ideal for controlling heavy loads with minimal energy input.

6. Logic and Control Applications

In earlier computers and automation systems, relays were used as logic gates — performing basic logical operations like AND, OR, and NOT.
Even today, they play a vital role in control logic systems in industries.

🔬 HOW Does a Relay Work?

Now that we know what a relay is and why we use it, let’s explore how it works internally.

Working Principle

A relay operates on the principle of electromagnetism.
When current passes through the coil, it generates a magnetic field that attracts a movable armature.
This armature opens or closes the contacts, thus switching the circuit.

Once the coil current stops, the magnetic field collapses, and the armature returns to its default position with the help of a spring.

Step-by-Step Working

1. No Input Signal (De-energized State):

   • Coil is inactive.

   • Common (COM) terminal is connected to Normally Closed (NC) terminal.

   • Load is OFF.

2. Input Signal Applied (Energized State):

   • Coil gets current and produces a magnetic field.

   • Armature moves, connecting Common (COM) to Normally Open (NO).

   • Load turns ON.

Internal Construction

A typical Electromechanical Relay (EMR) consists of:

• Coil: Generates a magnetic field when energized.

• Armature: Movable part that changes contact position.

• Spring: Returns the armature to default.

• Contacts: Conducting parts that open or close the circuit.

• Frame: Provides mechanical support.

Relay Terminals Explained

• COM (Common): Central terminal that connects to NC or NO based on the relay state.

• NC (Normally Closed): Connected to COM when the relay is de-energized.

• NO (Normally Open): Connected to COM when the relay is energized.

• Coil Terminals: Connected to the control circuit (input side).

Relay Operating Voltages

Relays are available in different operating voltages — 5V, 6V, 9V, 12V, 24V, etc.
Choose the coil voltage according to your control circuit (e.g., 5V relay for Arduino).

🧠 Types of Relays

Relays come in different types depending on their construction, function, and application.
Let’s look at the most common categories.

1. Electromechanical Relay (EMR)

• Uses an electromagnet and mechanical movement to switch contacts.

• Common in hobby electronics and industrial automation.

• Example: 5V Single Channel Relay Module

Pros:

• Simple, robust, affordable

• Provides electrical isolation

Cons:

• Mechanical wear and tear

• Slower switching speed

2. Solid State Relay (SSR)

• Uses semiconductors (like triacs or transistors) instead of moving parts.

• Faster, quieter, and more durable than EMR.

Pros:

• No noise or arcing

• Long life and high reliability

Cons:

• More expensive

• Generates heat during operation

3. Reed Relay

• Uses magnetically operated reeds enclosed in a glass tube.

• Compact and used in sensitive electronic applications.

4. Time Delay Relay

• Switches after a preset delay (ON delay or OFF delay).

• Used in automation and motor control circuits.

5. Latching Relay

• Maintains its position even after power is removed.

• Useful in memory circuits or power-saving systems.

6. Thermal Relay

• Operates based on temperature rise due to current flow.

• Commonly used as overload protection for motors.

⚡ Applications of Relays

Relays are truly versatile — from home appliances to industrial automation, they’re everywhere.

Here are some major applications:

1. Home Automation

• Smart home devices use relays to switch appliances via microcontrollers or IoT modules.

• Example: Turning ON lights or fans using Alexa, Google Home, or a smartphone.

2. Industrial Control Systems

• Used for motor starters, conveyor belts, solenoids, and safety systems.

• Provides electrical isolation between control and power systems.

3. Automotive Applications

• Relays are used for headlights, horns, wipers, and air conditioning systems.

• Helps control high-current loads safely.

4. Communication Systems

• Used for signal routing, switching, and protection in telecom networks.

5. Power Protection

• Relays detect faults like overcurrent or voltage fluctuations and disconnect circuits to prevent damage.

6. Embedded Projects

• Widely used in Arduino, ESP32, and Raspberry Pi projects to control high-voltage devices safely.

• Example: Controlling AC Bulb via Arduino and Relay Module.

🧰 How to Use a Relay in Your Circuit

Let’s explore how to integrate a relay into your circuit — whether manually or with a microcontroller.

Basic Connections

A simple relay circuit requires:

• Power Source (5V/12V)

• Relay Module

• Load (like a bulb or motor)

• Control Signal (from Arduino, ESP32, etc.)

Working with Arduino

Example: Turning ON/OFF a Lamp using Arduino and Relay

int relayPin = 7;

void setup() {
  pinMode(relayPin, OUTPUT);
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn ON
  delay(2000);
  digitalWrite(relayPin, LOW);  // Turn OFF
  delay(2000);
}

• When the relay receives a HIGH signal, it energizes and switches ON the load.

• When the signal is LOW, it turns OFF.

Safety Tip

Always connect the AC load on the NO (Normally Open) terminal side.
Ensure you have optocoupler isolation in your relay module when interfacing with microcontrollers.

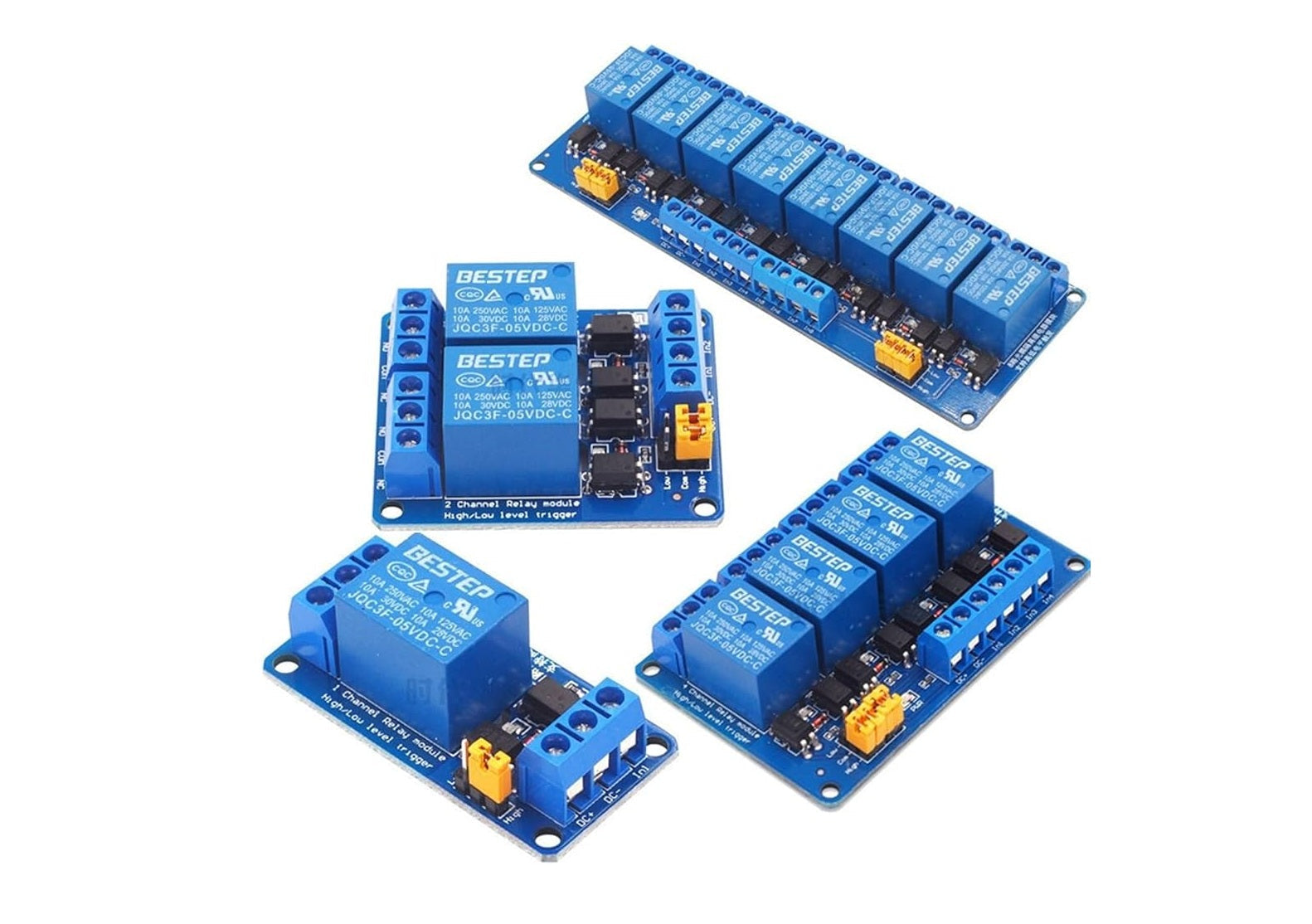

🛒 Popular Relay Modules You Can Buy on Elecsynergy.in

At Elecsynergy, we provide a range of reliable and tested relay modules suitable for both beginners and professionals.
Here are some popular options you can explore:

1. 5V Single Channel Relay Module – Ideal for Arduino beginners.

2. 2-Channel Relay Module – Control two devices at once.

3. 4-Channel Relay Board – Perfect for home automation projects.

4. 8-Channel Relay Board – Great for industrial or IoT control systems.

5. Solid State Relay Module – For fast, silent switching.

(Explore these and more in the Relays & Switches category on Elecsynergy.in)

💡 Key Features of a Relay

• Electrical isolation between control and load circuits

• Low power control of high-power devices

• Compact and easy to use

• Available in multiple voltage ratings

• Compatible with microcontrollers

• Affordable and durable

⚠️ Precautions While Using Relays

1. Use flyback diodes across the relay coil to prevent voltage spikes.

2. Avoid overloading the relay beyond its rated current.

3. Ensure proper insulation between AC and DC circuits.

4. Mount relays properly to avoid vibration or heat damage.

5. Use relay modules with optocouplers for microcontroller interfacing.

🔄 Relay vs Solid-State Relay – Quick Comparison

🧭 Conclusion

Relays may look simple, but they are one of the most powerful components in electronics — enabling automation, safety, and control across industries and projects.
From switching heavy loads in industrial systems to automating lights in smart homes, relays are truly the unsung heroes of modern electronics.

Understanding WHAT a relay is, WHY it’s used, and HOW it works gives you the foundation to build reliable and safe circuits — whether you’re a hobbyist, student, or engineer.

So, next time you’re planning an electronic project or automation system, remember:

“When it comes to controlling power — let the relay do the heavy lifting.”
