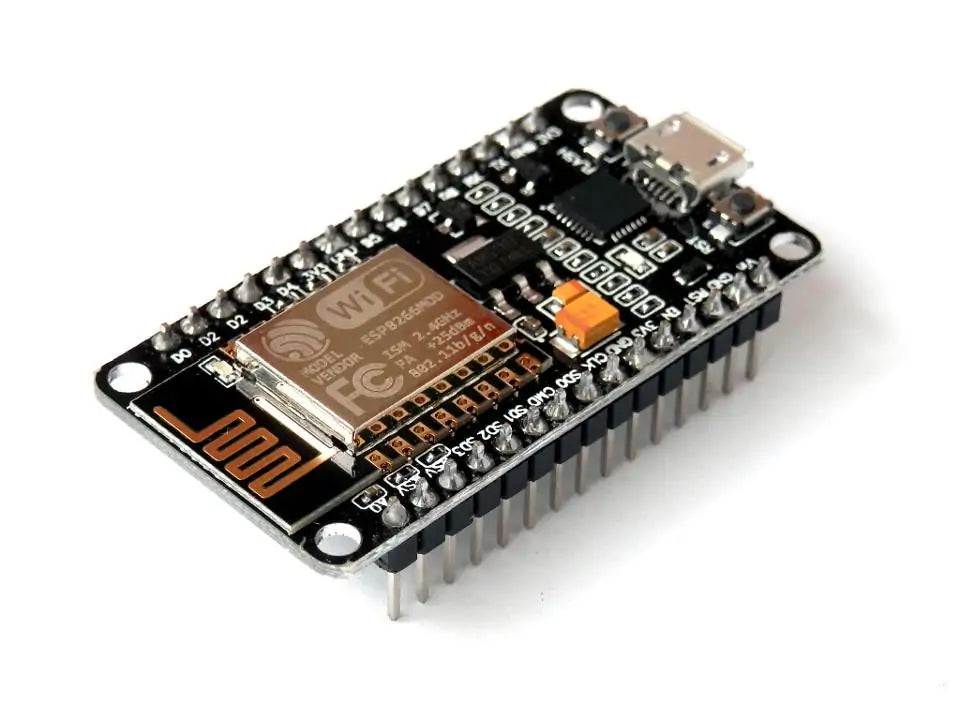

Introduction to NodeMCU

In the world of the Internet of Things (IoT), the NodeMCU has emerged as one of the most popular and versatile microcontroller development boards. Whether you’re building a smart home project, an automation system, or just experimenting with sensors and Wi-Fi connectivity — NodeMCU makes it easy, affordable, and accessible.

In this blog, we’ll take a deep dive into what NodeMCU is, why it’s widely used, and how it works — so by the end, you’ll have a clear and practical understanding of this amazing board and how you can use it in your own projects.

🧩 WHAT is NodeMCU?

NodeMCU is an open-source microcontroller development board based on the ESP8266 Wi-Fi chip. It was designed to help developers quickly prototype IoT (Internet of Things) applications using Lua scripting or the Arduino IDE.

At its core, the NodeMCU board features:

• ESP8266 microcontroller (specifically the ESP-12E module)

• Built-in Wi-Fi connectivity

• Flash memory (typically 4 MB)

• GPIO pins (for sensors, actuators, LEDs, etc.)

• Micro USB port for programming and power

• 3.3V operation (logic level)

The name “NodeMCU” actually comes from “Node” (network node) and “MCU” (microcontroller unit) — signifying a device that connects to networks and controls processes.

🔍 A Brief History

NodeMCU was created as an open-source firmware and hardware platform in 2014. It was originally developed to run on the ESP8266 Wi-Fi SoC from Espressif Systems — a low-cost, high-performance chip that quickly became a favorite among developers due to its integrated Wi-Fi and TCP/IP stack.

Since then, NodeMCU boards have gone through multiple iterations and are now available in versions like:

• NodeMCU v1.0 (ESP-12E module)

• NodeMCU v2 and v3 (with improved voltage regulators and pin layouts)

These boards are compact, affordable, and ideal for both beginners and professionals working on IoT-based projects.

💡 WHY use NodeMCU?

Let’s understand why NodeMCU stands out in the world of electronics and IoT.

1. Built-in Wi-Fi Connectivity

The ESP8266 chip comes with integrated Wi-Fi capabilities, allowing NodeMCU to connect to the internet or local networks directly — no need for external modules. This makes it perfect for smart devices and remote control systems.

2. Ease of Programming

NodeMCU can be programmed in:

• Arduino IDE (C/C++), or

• Lua Script (its original firmware language)

Using the Arduino IDE, you can write code easily, upload it via a micro USB cable, and start working — even if you’re a complete beginner.

3. Low Cost, High Performance

NodeMCU offers exceptional value. With built-in Wi-Fi, flash memory, and GPIO pins, it replaces multiple modules — all at a fraction of the cost.

4. Large Community Support

Being open-source, NodeMCU has a vast global community. That means you’ll find countless tutorials, code examples, and libraries online to accelerate your project development.

5. Compact and Versatile

Its small form factor and flexibility make it ideal for applications like:

• Smart home automation

• Wireless sensor networks

• Remote monitoring systems

• Cloud-connected projects

• IoT-based data logging

6. Support for IoT Protocols

NodeMCU can communicate using HTTP, MQTT, or WebSocket — enabling seamless integration with cloud services and mobile apps.

⚙️ HOW does NodeMCU work?

Let’s now break down the architecture, working, and pinout to understand how NodeMCU operates.

🧠 1. Architecture Overview

The heart of NodeMCU is the ESP8266 SoC, which contains:

• A Tensilica L106 32-bit RISC processor running at 80 or 160 MHz

• Integrated Wi-Fi module (802.11 b/g/n)

• 4 MB flash memory

• Support for SPI, I2C, UART, PWM, and ADC interfaces

It can connect to a Wi-Fi network as a client, or create its own access point, allowing direct device-to-device communication.

🔌 2. NodeMCU Pinout Explanation

The NodeMCU (ESP8266-based) board typically includes:

Note: Unlike Arduino, NodeMCU’s pins use 3.3V logic, not 5V. Exceeding this may damage the board.

⚙️ 3. Programming NodeMCU

NodeMCU can be programmed using:

• Arduino IDE

• PlatformIO

• ESPlorer (for Lua scripts)

Steps to Program using Arduino IDE:

1. Install the ESP8266 Board Package
   Go to File → Preferences → Add the ESP8266 board URL:

   https://arduino.esp8266.com/stable/package_esp8266com_index.json


   Then open Boards Manager and install ESP8266.

2. Select the Board
   Go to Tools → Board → NodeMCU 1.0 (ESP-12E Module).

3. Connect the Board via USB
   Use a micro USB cable.

4. Write or Upload Code
   Example: Blink an LED connected to D2 pin.

   void setup() {
     pinMode(D2, OUTPUT);
   }

   void loop() {
     digitalWrite(D2, HIGH);
     delay(1000);
     digitalWrite(D2, LOW);
     delay(1000);
   }


5. Upload and Monitor Output
   Click Upload, and open the Serial Monitor to see logs or sensor data.

🌐 4. Connecting NodeMCU to Wi-Fi

NodeMCU can easily connect to your home Wi-Fi network. Example:

#include <ESP8266WiFi.h>

const char* ssid = "YourWiFi";
const char* password = "YourPassword";

void setup() {
  Serial.begin(115200);
  WiFi.begin(ssid, password);
  Serial.print("Connecting");
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nConnected!");
  Serial.println(WiFi.localIP());
}

void loop() {}

After uploading, open the Serial Monitor, and you’ll see your local IP address assigned by the router — which you can use to control or monitor devices remotely.

🧰 5. NodeMCU in IoT Projects

You can connect sensors and actuators such as:

• DHT11/DHT22 (temperature & humidity)

• LDRs (light intensity)

• Relay modules (for automation)

• Servos & motors

• OLED/ LCD displays

• MQ-series gas sensors

NodeMCU communicates with these components via GPIO, I2C, or UART interfaces and can send/receive data through the cloud.

⚡ Common Applications of NodeMCU

NodeMCU’s Wi-Fi and GPIO capabilities make it perfect for:

• Home Automation Systems (smart lights, fans, appliances)

• IoT Data Logging (temperature, humidity, light)

• Remote Device Monitoring

• Smart Agriculture

• Weather Stations

• Wi-Fi-controlled Robots

• Voice-controlled Devices (via Alexa, Google Assistant)

🔧 Interfacing NodeMCU with Other Devices

NodeMCU works seamlessly with:

• Arduino Sensors and Modules

• Relays and Motor Drivers

• Cloud Platforms like Blynk, ThingSpeak, Firebase, and MQTT brokers

• Smart Assistants for IoT integration

Its compatibility with 3.3V logic makes it safe to connect to most low-power modules directly.

🧠 Troubleshooting and Tips

• Always use a good quality USB cable for programming.

• Ensure CH340/CP2102 drivers are installed if your board isn’t recognized.

• Avoid connecting 5V signals to GPIOs — use logic level shifters if needed.

• Use the Serial Monitor for debugging.

• If facing upload issues, press and hold the FLASH button while uploading.

🚀 Why NodeMCU is Perfect for Beginners

NodeMCU simplifies IoT learning by combining:

• Easy Wi-Fi access

• Simple programming via Arduino IDE

• Affordable hardware

• Large online support

For anyone stepping into the world of smart electronics, NodeMCU is the perfect starting point.

🛒 Where to Buy NodeMCU

You can easily get original and quality NodeMCU boards along with sensors, modules, and accessories from:

👉 Buy NodeMCU Development Board
👉 Explore IoT Modules and Sensors

All products from Elecsynergy are tested for reliability and come with prompt support — perfect for hobbyists, students, and professionals alike.

🧾 Conclusion

NodeMCU is a powerful yet beginner-friendly IoT development board that has redefined how we connect electronics to the internet. With built-in Wi-Fi, affordable pricing, and ease of programming, it serves as the foundation for a wide range of modern electronics projects.

Understanding WHAT NodeMCU is, WHY it’s useful, and HOW it works empowers you to build your own smart systems — from home automation to industrial IoT solutions.

If you’re passionate about innovation, NodeMCU is your gateway to the connected world.
