Introduction to Capacitors

When you open any electronic device — from a smartphone to a washing machine — you’re surrounded by tiny yet powerful components that make it all function seamlessly. One of the most essential among them is the capacitor.

Capacitors are everywhere in the world of electronics — from smoothing voltage fluctuations in power supplies to tuning frequencies in communication systems. But what exactly is a capacitor? Why is it so widely used, and how does it actually work?

Let’s dive deep into these questions in a simple and practical way.

1. What is a Capacitor?

A capacitor is an electronic component that stores electrical energy in an electric field. It is somewhat similar to a small rechargeable battery, but it charges and discharges energy almost instantly.

In simple terms —

A capacitor stores electric charge when connected to a power source and releases that stored charge when required.

A basic capacitor consists of two conductive plates separated by a non-conductive material known as a dielectric. The plates are usually made of metal, while the dielectric can be ceramic, paper, plastic, mica, or even air — depending on the type of capacitor.

When a voltage is applied across the plates, one plate accumulates positive charge, and the other accumulates negative charge, creating an electric field between them. This field holds energy that can be released when the circuit needs it.

2. Understanding Capacitance

The ability of a capacitor to store electrical charge is measured as Capacitance (C).
It is defined as:

C = Q/V

Where:

• C = Capacitance (measured in Farads, F)

• Q = Charge stored (in Coulombs)

• V = Voltage applied (in Volts)

A 1 Farad capacitor can store 1 Coulomb of charge when a 1 Volt potential difference is applied.

However, in practical circuits, capacitors are usually much smaller in value — microfarads (µF), nanofarads (nF), or picofarads (pF).

3. Symbol and Representation

In circuit diagrams, capacitors are represented by symbols that depend on their type:

• Non-polarized capacitor: Two parallel lines

• Polarized (Electrolytic) capacitor: One straight line and one curved line, indicating polarity

Example:

   | |     → Non-polarized capacitor
   |(      → Polarized capacitor (positive on straight line)

4. How Does a Capacitor Work?

Let’s break down its operation step-by-step:

Step 1: Charging Phase

When connected to a DC power source, electrons start accumulating on one plate (negative), leaving the other plate positively charged. The dielectric between them prevents direct current flow but allows the electric field to develop.

Step 2: Energy Storage

The capacitor stores energy in the electric field formed between the plates. The stored energy (E) can be calculated using:

E = (1/2)*C*V^2

This stored energy can later be released when the circuit requires it.

Step 3: Discharging Phase

When the power source is removed, and the circuit allows current flow, the capacitor discharges its stored energy, providing current to the circuit temporarily — like a short-term battery.

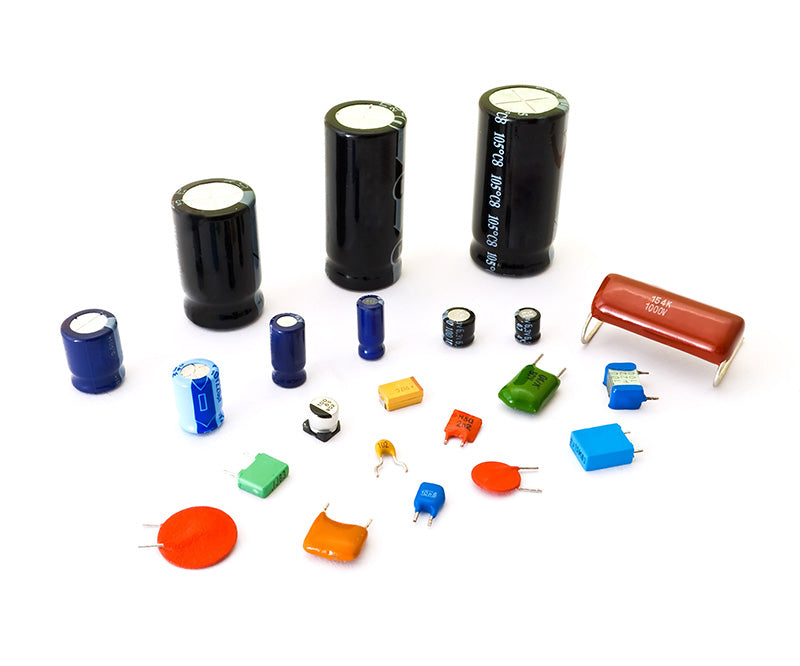

5. Types of Capacitors

Capacitors come in many forms and sizes, each designed for specific applications. Here are the most common types:

(a) Ceramic Capacitor

• Dielectric: Ceramic material

• Features: Non-polarized, small size, low cost

• Applications: General-purpose circuits, filters, decoupling

(b) Electrolytic Capacitor

• Dielectric: Oxide layer with electrolyte

• Features: Polarized, high capacitance, used in DC circuits

• Applications: Power supply filtering, energy storage

(c) Tantalum Capacitor

• Features: Stable, long-lasting, polarized, compact

• Applications: Audio systems, precision devices

(d) Film Capacitor

• Dielectric: Plastic film

• Features: Non-polarized, good frequency characteristics, reliable

• Applications: Motor circuits, power electronics

(e) Super Capacitor (Ultracapacitor)

• Features: Extremely high capacitance, bridges gap between capacitors and batteries

• Applications: Energy backup, regenerative braking in EVs

6. Why Do We Use Capacitors?

Now that we know what a capacitor is and how it works, let’s answer the “Why” — why do we need them in electronic circuits?

(a) Energy Storage

Capacitors act as mini energy reservoirs. They store energy when excess power is available and release it when the circuit demands more.

Example: In a camera flash, capacitors store energy and release it quickly for a bright flash.

(b) Filtering and Smoothing

In power supplies, capacitors smooth out voltage fluctuations by filtering AC ripples from DC output.

Example: In a mobile charger, capacitors eliminate noise from rectified signals to provide steady DC voltage.

(c) Coupling and Decoupling

• Coupling: Capacitors allow AC signals to pass from one stage to another while blocking DC.

• Decoupling: Capacitors filter out noise and stabilize voltage supply for sensitive ICs.

(d) Timing and Oscillation

When combined with resistors or inductors, capacitors create RC or LC circuits used for timing and frequency generation.

Example: In oscillators, capacitors help generate clock pulses or tune frequencies in radio receivers.

(e) Power Factor Correction

In industrial systems, capacitors improve the power factor by compensating reactive power losses.

(f) Signal Processing

Used in filters (low-pass, high-pass, band-pass) to allow or block specific frequency ranges.

7. Where Are Capacitors Used?

Capacitors are found in almost every electronic and electrical device you use daily. Here are a few examples:

8. Key Parameters of Capacitors

When choosing a capacitor for your project, several parameters determine its suitability:

Example:
If you need a capacitor for a 5V circuit, always choose one rated at least 25% higher, i.e., 6.3V or 10V.

9. How to Test a Capacitor

You can test a capacitor using a Digital Multimeter (DMM) that has a capacitance mode.

Steps:

1. Discharge the capacitor completely.

2. Set the multimeter to capacitance mode (C).

3. Connect the positive and negative probes to the capacitor terminals.

4. The meter will display the measured capacitance.

5. Compare the value with the rated capacitance — if the deviation is large, the capacitor may be faulty.

10. Common Faults in Capacitors

Capacitors, especially electrolytic ones, degrade over time due to temperature, voltage stress, or aging. Common faults include:

• Open Capacitor – No capacitance, circuit acts as if it’s missing.

• Shorted Capacitor – Acts like a short circuit, damaging components.

• Leaky Capacitor – Allows unwanted current flow, causing instability.

• Reduced Capacitance – Loss of energy storage capacity.

Visual Clues:
Bulging, leakage, or discoloration are signs of a failed capacitor — especially in power supply circuits.

11. How to Select the Right Capacitor

Choosing the correct capacitor depends on the application, voltage, and frequency requirements.

Here’s a quick guide:

Tip: Always choose capacitors with a voltage rating at least 1.5x higher than your circuit’s maximum voltage.

12. How to Connect Capacitors in Circuits

Capacitors can be connected in series or parallel depending on the required capacitance and voltage.

Series Connection:

• Capacitance decreases.

• Voltage rating increases.

1/C_total = (1/C1) + (1/C2) + ...

Parallel Connection:

• Capacitance increases.

• Voltage rating remains the same.

C_total = C1 + C2 + C3 + ...

Example:
If you connect two 100µF capacitors in parallel → total = 200µF.
In series → total = 50µF, but voltage tolerance doubles.

13. Applications in Real-World Electronics

Let’s look at some practical applications of capacitors in real devices:

(a) Power Supply Circuits

Capacitors smooth out the output of rectifiers, ensuring steady DC output.

(b) Audio Amplifiers

Used in coupling and bypass circuits to improve sound quality.

(c) Motor Starters

Large capacitors provide phase shift and high starting torque in single-phase motors.

(d) Communication Circuits

Capacitors tune and match frequencies in radio and antenna systems.

(e) Microcontroller Boards

Used as decoupling capacitors near ICs to suppress high-frequency noise (e.g., in Arduino, ESP32, and Raspberry Pi boards).

14. Safety Precautions When Handling Capacitors

Capacitors, especially large electrolytic or high-voltage ones, can store dangerous amounts of energy.
Here are some safety measures:

• Always discharge capacitors before touching or replacing them.

• Never reverse polarity in polarized capacitors.

• Avoid over-voltage; it may cause explosion or leakage.

• Handle high-voltage capacitors with insulated tools.

15. Interesting Facts About Capacitors

• Capacitors can charge and discharge millions of times without wear.

• The world’s largest supercapacitors can store energy comparable to a small battery.

• In electric vehicles, capacitors assist in regenerative braking by absorbing sudden power surges.

• Every motherboard, smartphone, and power bank uses dozens of capacitors to maintain power stability.

16. Summary — Understanding Capacitors at a Glance

17. Final Thoughts

Capacitors are one of the most versatile and essential components in electronics.
Understanding how they work — their types, applications, and selection parameters — lays the foundation for mastering electronic circuit design.

Whether you’re building your first Arduino project or designing an advanced IoT device, capacitors play a vital role in ensuring stability, performance, and reliability.
