Introduction to Arduino Uno R3

🔰 Introduction

In today’s world of innovation, creativity, and automation, the Arduino Uno R3 stands as the gateway for turning your ideas into working prototypes. From simple LED blink experiments to advanced IoT projects, Arduino Uno has empowered millions of enthusiasts, students, and engineers to explore the world of electronics and programming with ease.

In this blog, we will dive into the WHAT, WHY, and HOW of Arduino Uno R3 — so that by the end, you’ll have a crystal-clear understanding of this powerful microcontroller board and its real-world potential.

🧩 WHAT is Arduino Uno R3?

At its core, the Arduino Uno R3 is a microcontroller development board based on the ATmega328P microcontroller from Microchip (formerly Atmel). It acts as the brain of your electronic projects, capable of reading inputs (like sensors) and controlling outputs (like LEDs, motors, or displays) according to the code you write.

Think of Arduino as a bridge between electronics and software — allowing you to bring your ideas to life through simple code and hardware connections.

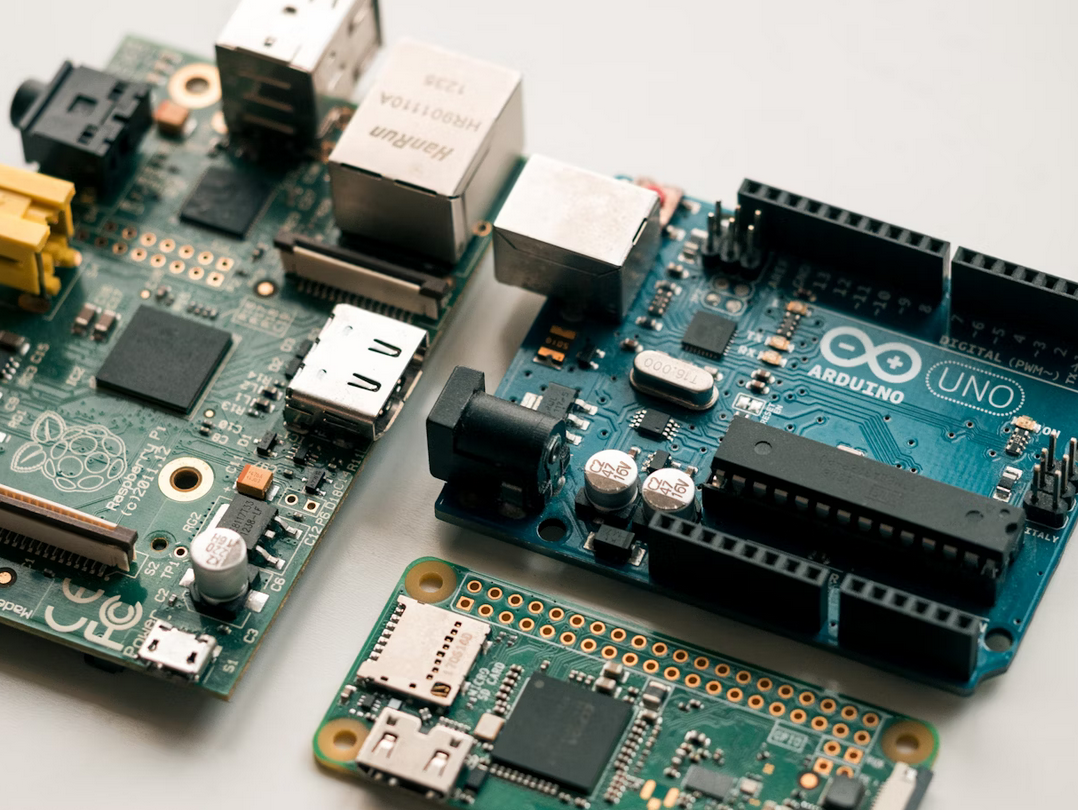

Arduino Uno R3 Overview

The R3 in Arduino Uno R3 stands for Revision 3, which is the most stable and widely used version of the Uno board, featuring improved USB interface and better hardware compatibility.

🧠 WHY Use Arduino Uno R3?

The reason behind Arduino Uno’s massive popularity lies in its simplicity, flexibility, and affordability. It’s designed to make electronics accessible to everyone — from complete beginners to seasoned engineers.

Let’s understand why Arduino Uno is the go-to choice for so many creators.

1. Easy to Learn and Use

Arduino Uno is beginner-friendly. You don’t need to be an expert in embedded systems or programming to start — just install the Arduino IDE, connect the board, and start coding.
Its simple structure and vast online tutorials make learning fun and intuitive.

2. Open-Source Ecosystem

The Arduino hardware and software are open-source, which means:

• You can freely download schematics, modify designs, and use them for your own projects.

• You get access to a large community sharing codes, examples, and solutions.

This open ecosystem has made Arduino the most collaborative electronics platform worldwide.

3. Compatibility with Sensors and Modules

The Arduino Uno supports an extensive range of sensors, modules, and shields, such as:

• Ultrasonic sensors

• Temperature & humidity sensors

• Bluetooth, Wi-Fi, and GSM modules

• Motor driver shields

• LCD and OLED displays

• Relay modules

This flexibility allows users to build countless projects, from simple gadgets to smart automation systems.

4. Ideal for Prototyping

Arduino Uno is perfect for rapid prototyping. You can quickly connect components on a breadboard, write a simple program, and test your idea.
Once it works, you can move to a final PCB version or an industrial design.

5. Affordable and Widely Available

Arduino Uno boards are cost-effective and easily available through trusted electronics suppliers — like Elecsynergy.in — making them accessible to students, hobbyists, and startups alike.

6. Strong Community Support

With millions of users worldwide, you can find tutorials, documentation, and troubleshooting help easily. Whether it’s on YouTube, GitHub, or the official Arduino forum, help is always available.

7. Real-World Applications

Arduino Uno is used in:

• Home automation systems

• Robotics projects

• IoT devices

• Weather stations

• Smart agriculture setups

• Industrial automation

• Educational kits and labs

It bridges imagination and innovation — empowering creators to think, design, and build.

⚙️ HOW Does Arduino Uno R3 Work?

Let’s decode the internal working of Arduino Uno to understand how this board turns your code into real-world actions.

1. The Core – ATmega328P Microcontroller

At the heart of Arduino Uno lies the ATmega328P, an 8-bit microcontroller.
It processes your code and controls the I/O pins to perform tasks.

When you write code (called a sketch) in the Arduino IDE and upload it to the board, it gets stored in the flash memory of this microcontroller.

2. Power Supply System

You can power your Arduino Uno in multiple ways:

• USB port (5V supply from computer)

• External barrel jack (7–12V)

• Vin pin (for external power)

The onboard voltage regulator ensures stable 5V and 3.3V supplies to components.

3. USB Interface (ATmega16U2)

The ATmega16U2 chip on the Uno R3 acts as a USB-to-Serial converter, allowing communication between your computer and the ATmega328P microcontroller.

This lets you:

• Upload sketches (programs)

• Communicate via Serial Monitor

4. Input/Output (I/O) Pins

Arduino Uno has:

• 14 Digital I/O pins (0–13) — used for digital signals (HIGH/LOW).

  • Pins 3, 5, 6, 9, 10, and 11 support PWM (Pulse Width Modulation).

• 6 Analog Input pins (A0–A5) — used for reading analog sensor data.

5. Clock and Reset

A 16 MHz crystal oscillator provides precise timing for operations.
The RESET button restarts the program without disconnecting power.

6. Communication Protocols

Arduino Uno supports multiple communication methods:

• UART (Serial Communication) via pins 0 (RX) and 1 (TX)

• SPI Communication via pins 10 (SS), 11 (MOSI), 12 (MISO), 13 (SCK)

• I2C Communication via pins A4 (SDA) and A5 (SCL)

These allow it to interface with various modules and devices simultaneously.

💻 How to Get Started with Arduino Uno R3

Now that you know what it is and how it works, let’s learn how to set up and use your Arduino Uno R3.

1. Components You Need

To start your first Arduino project, gather:

• Arduino Uno R3 board

• USB Type-B cable

• Breadboard and jumper wires

• LED and 220Ω resistor

• Computer with Arduino IDE installed

You can find all these components in the Arduino Starter Kit available on Elecsynergy.in.

2. Install the Arduino IDE

Download the Arduino IDE (Integrated Development Environment) from:
👉 https://www.arduino.cc/en/software

Install and open it on your computer.

3. Connect the Arduino Uno

Use a USB Type-B cable to connect the Arduino Uno to your PC.
You’ll notice the Power LED (ON) lights up, indicating successful connection.

4. Select the Board and Port

In the Arduino IDE:

• Go to Tools → Board → Arduino Uno

• Go to Tools → Port → (Select your COM port)

5. Write Your First Program

Here’s the classic “Blink” sketch to test your board:

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as output
}

void loop() {
  digitalWrite(13, HIGH); // Turn LED ON
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn LED OFF
  delay(1000);            // Wait for 1 second
}

Upload this code by clicking the Upload (→) button.
The onboard LED (connected to pin 13) will start blinking every second — congratulations, your Arduino Uno is alive!

🔌 Interfacing Arduino Uno with Components

Here’s how Arduino Uno can connect with different devices:

Arduino Uno can integrate with almost any module — allowing infinite possibilities.

🧰 Accessories and Shields for Arduino Uno R3

The Arduino ecosystem includes plug-and-play shields that add advanced functionalities without complex wiring.

Here are some popular shields:

You can find these Arduino shields and accessories at Elecsynergy.in.

⚡ Applications of Arduino Uno R3

Arduino Uno is used in a wide range of practical and creative applications, such as:

1. Home Automation – Control appliances using sensors or smartphone apps.

2. Robotics – Build line-following robots, robotic arms, or drones.

3. IoT Systems – Connect devices to the internet for smart monitoring.

4. Agriculture Automation – Soil moisture monitoring, smart irrigation.

5. Industrial Monitoring – Machine data logging and control systems.

6. Educational Projects – STEM learning in schools and colleges.

7. Wearable Devices – Custom sensors and fitness applications.

🔋 Advantages of Arduino Uno R3

• Simple, user-friendly programming

• Affordable and widely supported

• Open-source hardware and software

• Strong community and online support

• Ideal for beginners and prototypers

• Supports a wide range of components

⚠️ Precautions While Using Arduino Uno

1. Avoid supplying voltage beyond 12V on the power jack.

2. Always double-check pin connections before powering up.

3. Disconnect the board while making wiring changes.

4. Use a proper resistor with LEDs or modules.

5. Avoid short circuits between VCC and GND.

🛒 Buy Arduino Uno R3 and Starter Kits at Elecsynergy

At Elecsynergy, we provide original and high-quality Arduino boards, accessories, and starter kits for beginners, students, and developers.

Here are some options you can explore:

1. Arduino Uno R3 Board – Best for learning and prototyping.

2. Arduino Starter Kit for Beginners – Includes all essential components.

3. Sensor Modules Kit – Variety of sensors for multiple projects.

4. Relay & Motor Driver Boards – For automation and robotics.

🔗 Explore these at: https://elecsynergy.in/collections/microcontroller-boards

🧭 Conclusion

The Arduino Uno R3 is not just a development board — it’s a revolution in learning electronics and coding.
By understanding WHAT Arduino is, WHY it’s so widely used, and HOW it works, you’ve taken your first big step into the world of innovation.

Whether you’re a beginner or a professional, Arduino Uno offers an easy yet powerful way to build, test, and automate your ideas.
From controlling an LED to designing a home automation system — your creativity is the only limit.

So, start experimenting today and bring your imagination to life with Arduino Uno — available now at Elecsynergy.in.
